ATIB Magnetics 41" 105 IP | ID: 791
ATIB Magnetics 41" 105 IP | ID: 791
Regular price
$33,500.00
Regular price
$33,500.00
Sale price
$33,500.00
Unit price
/
per
PRICE DOES NOT INCLUDE ANY CUSTOMIZATIONS THAT MAY BE REQUIRED TO FIT YOUR MACHINE

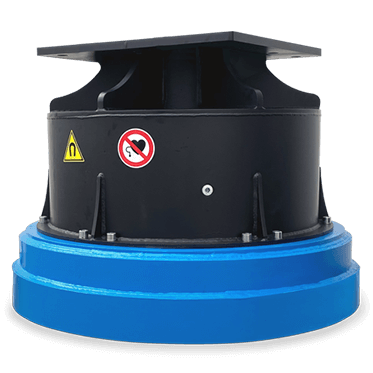

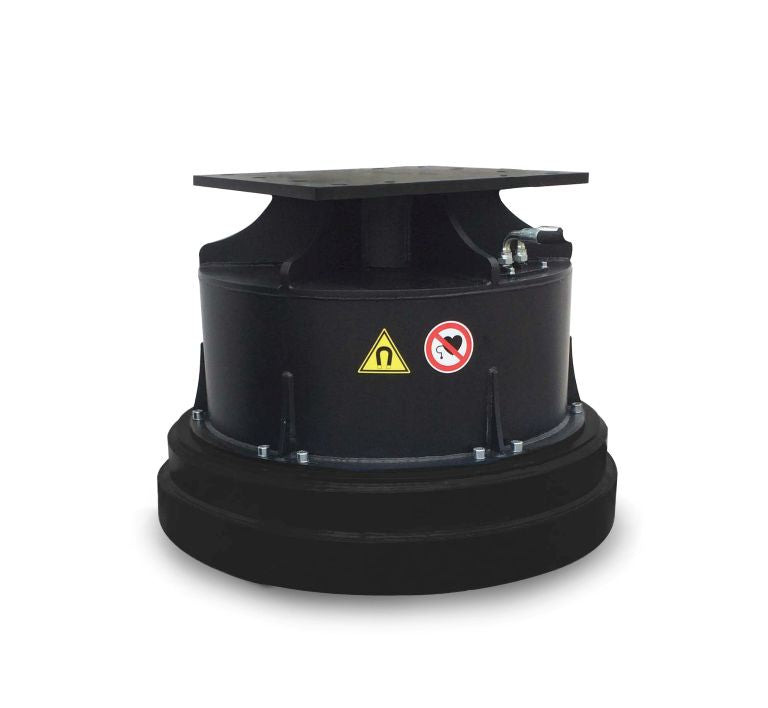

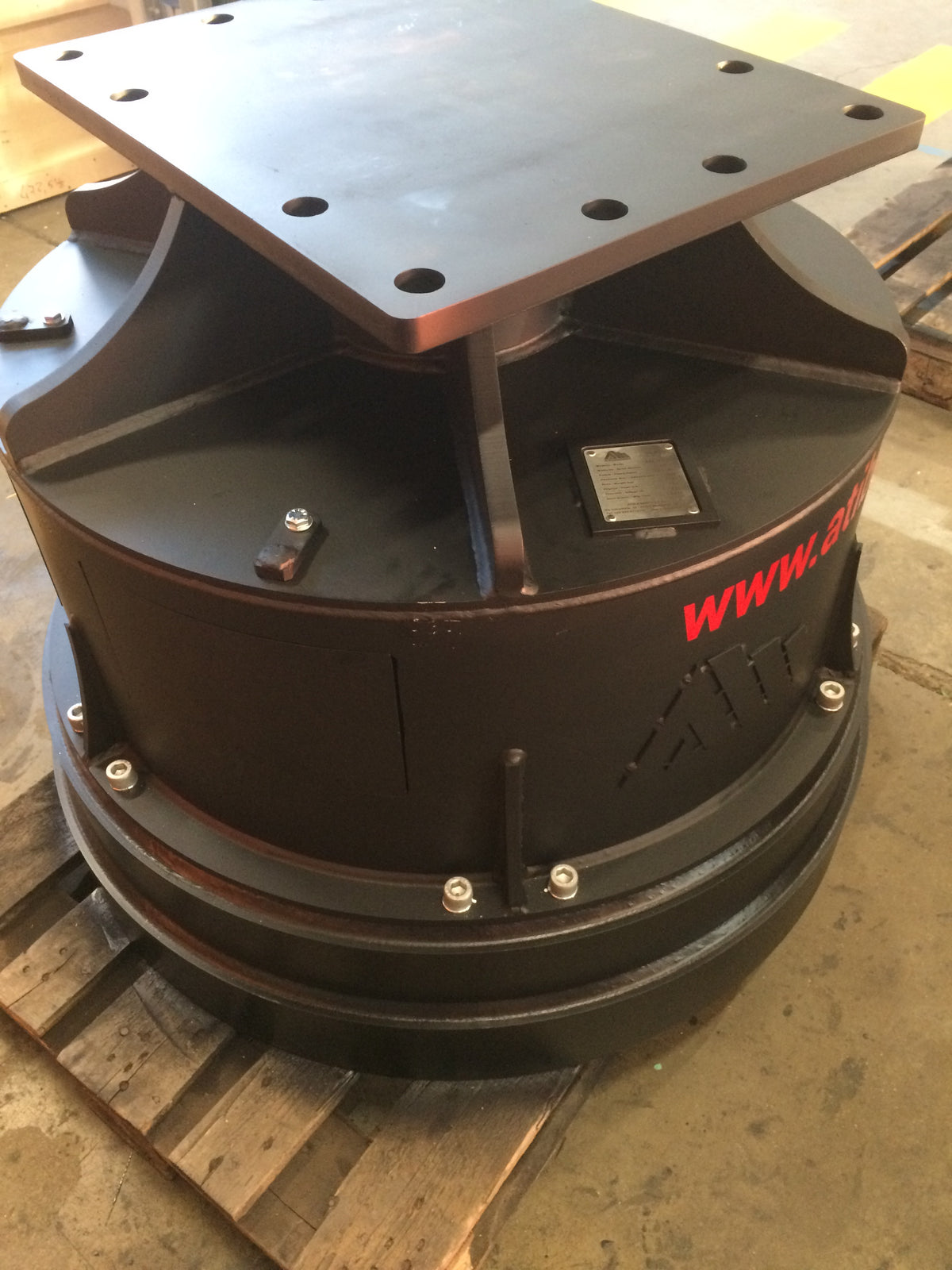

Max Operating Efficiency Meets Heavy-Duty Versatility. The ATIB 105 IP (41") Hydraulic Electromagnet is engineered for high-performance scrap handling, metal recycling, and site cleanup. Featuring an integrated quick-coupling plate, this attachment enables effortless, operator-free mounting and ultra-precise magnet positioning on mid-sized excavators.
Key Features & Capabilities
- Quick-Coupling Plate (IP): Attaches directly without manual operator intervention and can be customized to fit your specific machine quick-hitch system.
- Hydraulic Powered: Operates directly off your machine's hydraulic auxiliary lines—no separate generator set required.
- Built for Demolition & Scrap: Designed to effortlessly move bulk scrap iron, steel debris, and ferrous materials in scrap yards or recycling facilities.

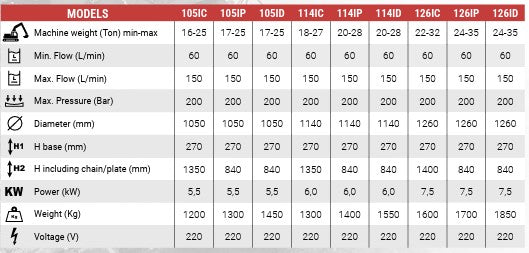

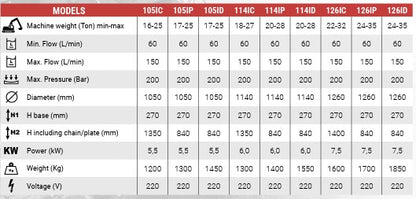

Technical Specifications
| Magnet Diameter | 41 in (1,050 mm) |
| Recommended Carrier Weight | 17 – 25 Tons |
| Base Unit Height (H1) | 10.6 in (270 mm) |
| Total Height w/ Plate (H2) | 33.1 in (840 mm) |
| Total Weight | 2,866 lbs (1,300 kg) |
| Power Requirement | 5.5 kW |
| Min–Max Hydraulic Flow | 15.8 – 39.6 GPM (60 – 150 L/min) |
| Max Operating Pressure | 2,900 PSI (200 Bar) |
| Operating Voltage | 220 V |

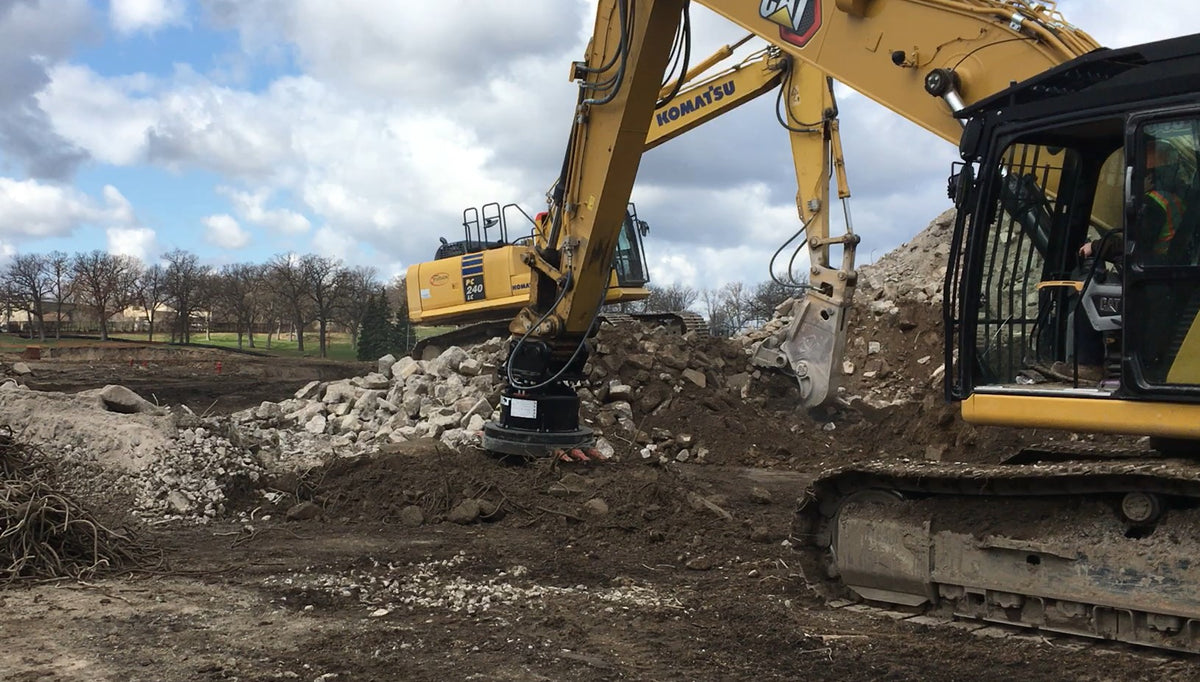

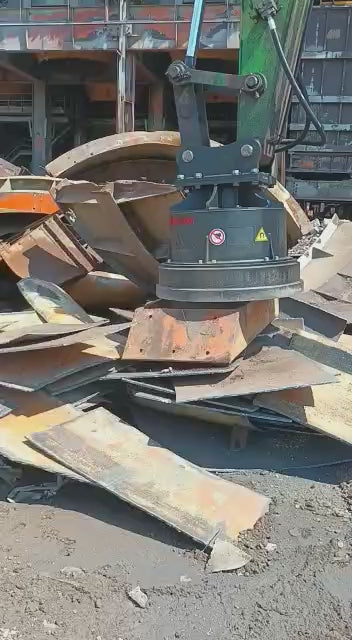

Ideal Applications
- Metal recycling centers and scrap yards
- Demolition waste sorting and ferrous metal recovery
- Industrial site cleanup and precise magnetic placement
