ATIB Magnetics 45" 114 IC | ID: 792
ATIB Magnetics 45" 114 IC | ID: 792
Regular price
$35,400.00
Regular price
$35,400.00
Sale price
$35,400.00
Unit price
/
per
PRICE DOES NOT INCLUDE ANY CUSTOMIZATIONS THAT MAY BE REQUIRED TO FIT YOUR MACHINE

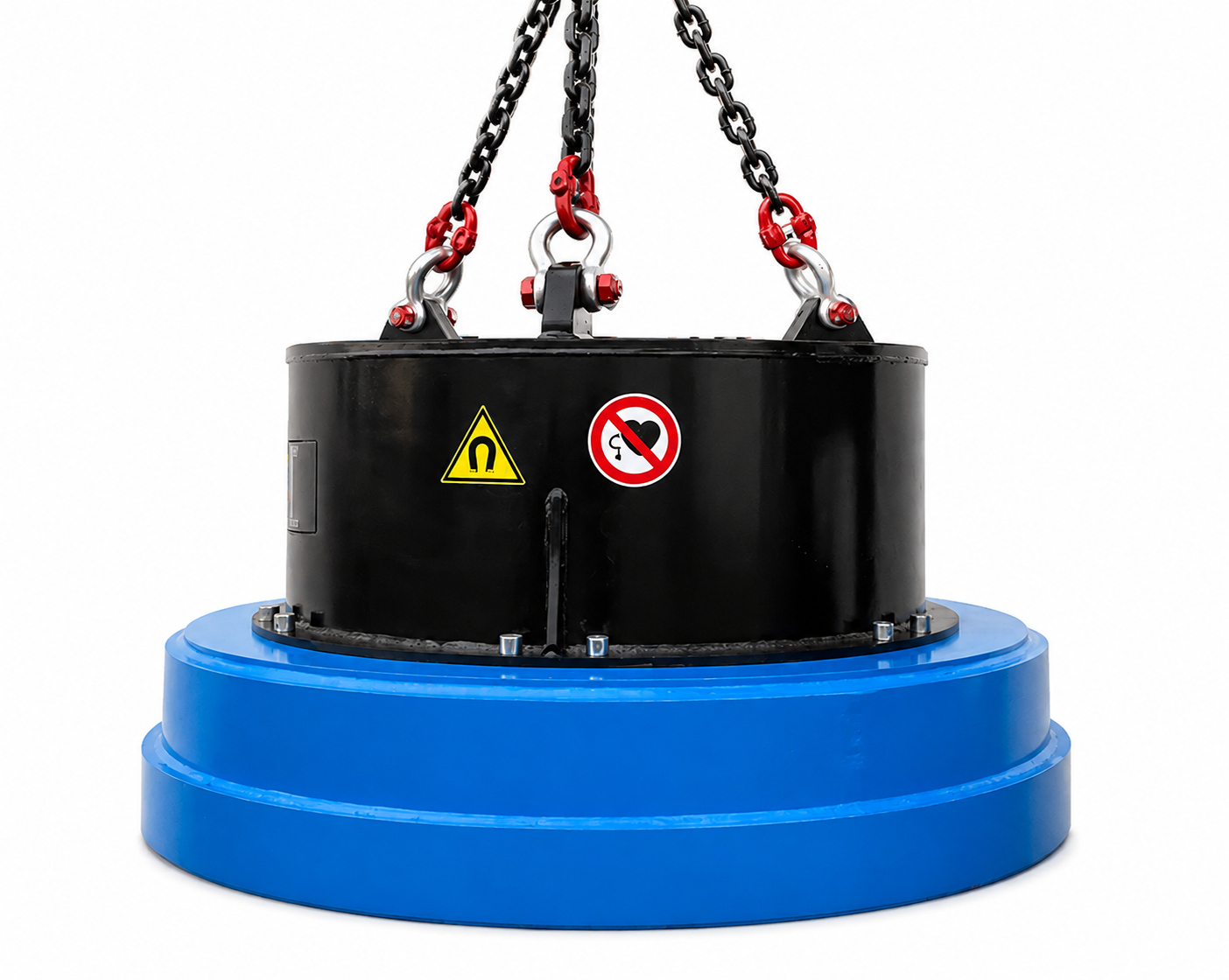

Max Operating Efficiency Meets Heavy-Duty Versatility. The ATIB 114 IC (45") Hydraulic Electromagnet is engineered for high-performance scrap handling, metal recycling, and site cleanup. Equipped with heavy-duty drop chains, this attachment delivers exceptional lifting capacity and an outstanding power-to-weight ratio for mid-to-large excavators and loaders.
Key Features & Capabilities
- Chain-Suspended Design (IC): Built specifically for scrap processing and site clearing, providing maximum movement flexibility and high capacity-to-weight efficiency.
- Hydraulic Powered: Operates directly off your machine's hydraulic auxiliary lines—no separate generator set required.
- Built for Demolition & Scrap: Designed to effortlessly move bulk scrap iron, steel debris, and ferrous materials in scrap yards or recycling facilities.

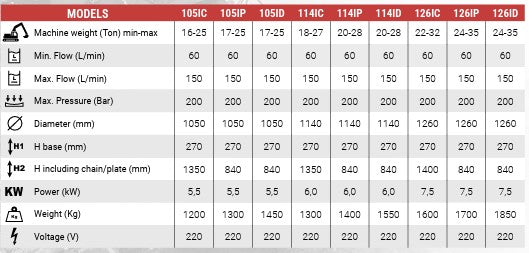

Technical Specifications
| Magnet Diameter | 45 in (1,140 mm) |
| Recommended Carrier Weight | 18 – 27 Tons |
| Base Unit Height (H1) | 10.6 in (270 mm) |
| Total Height w/ Chain (H2) | 53.1 in (1,350 mm) |
| Total Weight | 2,866 lbs (1,300 kg) |
| Power Requirement | 6.0 kW |
| Min–Max Hydraulic Flow | 15.8 – 39.6 GPM (60 – 150 L/min) |
| Max Operating Pressure | 2,900 PSI (200 Bar) |
| Operating Voltage | 220 V |
Ideal Applications
- Metal recycling centers and scrap yards
- Demolition waste sorting and ferrous metal recovery
- Industrial site cleanup and magnetic sorting
