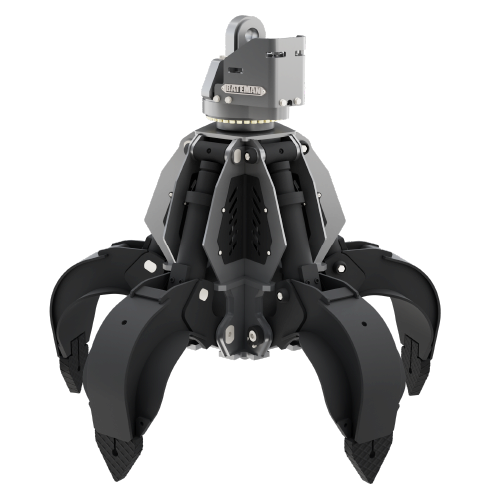

Bateman B5T200 5 Tine 1.50 Cu Yd HD Grapple
Bateman B5T200 5 Tine 1.50 Cu Yd HD Grapple
PRICE DOES NOT INCLUDE ANY CUSTOMIZATIONS THAT MAY BE REQUIRED TO FIT YOUR MACHINE
Engineered for the Harshest Scrap Yards & Processing Mills
The BATEMAN 200 Series Heavy Duty Hydraulic Grapple (Model: B5T200 150SC) is built to withstand the punishing, highly abusive environments of large-scale scrap recycling and industrial mills. Featuring an over-built, ultra-rugged orange peel design, this 1.5 cubic yard grapple delivers maximum uptime, unyielding structural integrity, and structural longevity where standard attachments fail.
Maximum Component Protection & Durability
Down-time is lost revenue. That is why the BATEMAN 200 Series features an over-engineered layout that completely isolates and guards critical hydraulic components. With fully protected cylinders and guarded cylinder hoses, you can operate confidently in deep scrap piles without fear of costly punctures or line breaks. Oversized pins and custom locking nuts ensure the assembly stays tight and true under extreme torsional stress.
High-Wear Tine Optimization
Equipped with 5 semi-closed tines, this grapple optimizes material retention while allowing smaller debris to shed. High-wear zones across the tines are reinforced with extra-heavy, abrasion-resistant steel, significantly extending the service life of the attachment and reducing maintenance intervals.
Key Features & Performance Benefits
- Full 360° Continuous Hydraulic Rotation: Provides precise positioning and agility, allowing operators to approach piles from any angle and cycle materials faster.
- Heavy-Duty Orange Peel Design: Tailor-made for scrap metal processing, demolition cleanup, and heavy industrial bulk handling.
- Fully Enclosed Hydraulics: Cylinders and hoses are fully guarded against impact, falling debris, and abrasive materials.
- Premium Wear Resistance: Strategic deployment of advanced wear-resistant steel in high-impact zones prevents premature structural thinning.
Technical Specifications
| Model | B5T200 150SC |
| Series | BATEMAN 200 Series |
| Grapple Style | Heavy Duty Orange Peel |
| Tine Configuration | 5 Tines (Semi-Closed as Per Drawing) |
| Rotation | Hydraulic 360° Rotation |
| Capacity / Size | 1.5 Cubic Yards (Cu. Yd.) |
| Working Pressure | 5,000 PSI |
| Empty Weight | Approx. 6,000 lbs. (+ 200 lbs. Interlink Yoke) |
| Hardware | Oversized pins and custom locking nuts |
Ideal Applications
- High-volume scrap metal yards
- Steel mills and industrial foundries
- Heavy-duty demolition and site clearing
- Waste and bulk material handling
