Bateman Manufacturing HD 5 Tine 1.50 cu yard Grapple B5T200-150SC ID: 279

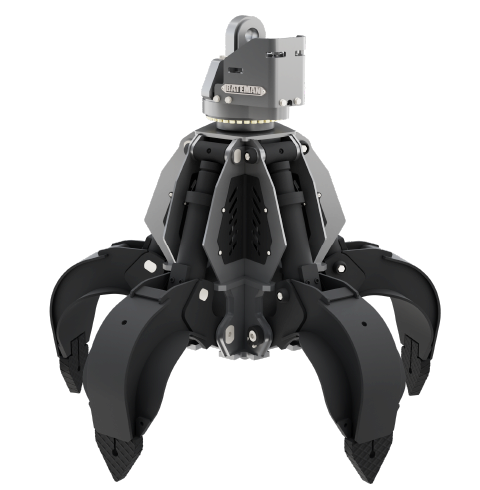

Bateman 200 Series Heavy Duty Hydraulic Grapple (B5T200-150SC)

The Bateman 200 Series Heavy Duty Hydraulic Grapple is an elite, orange peel style grapple engineered specifically to withstand the highly abusive, continuous-use environments of large scrap yards and mills.

Built with an intentionally over-engineered design, this grapple features fully protected and guarded cylinders and cylinder hoses, alongside oversized pins and custom locking nuts to minimize downtime. The heavy-duty, semi-closed tines incorporate reinforced, high-grade wear-resistant steel strategically placed in high-impact wear zones to maximize service life under a powerful 5,000 PSI working pressure.

Advanced 360° Hydraulic Rotation

Equipped with a robust, continuous 360° hydraulic rotation system, the Bateman 200 Series delivers precise maneuverability, high torque, and superior material retention, making it ideal for processing bulky scrap metal and heavy industrial debris efficiently.

Technical Specifications:

• Model: B5T200 150SC
• Tine Configuration: 5 Semi-Closed (SC) Tines
• Capacity: 1.5 Cubic Yards
• Working Pressure: 5,000 PSI
• Rotation: Continuous 360° Hydraulic Rotation
• Empty Weight: Approx. 6,000 lbs. (+ 200 lbs. Interlink Yoke)
