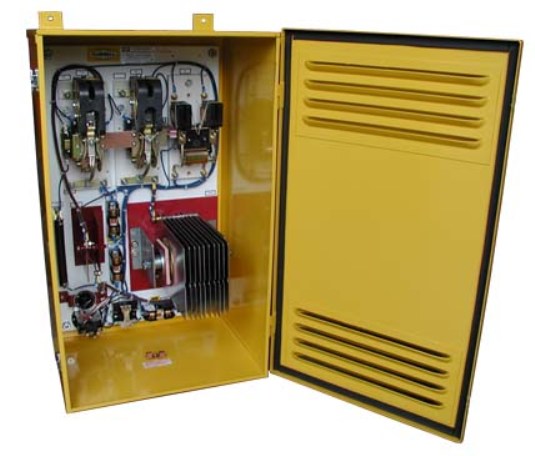

The Type 4292 Yardmaster Controllers incorporated heavy-duty time proven components arranged to provide optimum control of your lifting magnets.
- Automatic Discharge. Rated 5-50 amps DC. Front-Wired, Front-Removable components.
- Mechanically interlocked Lift and Drop . NEMA rated mill duty contactors.
- Permanently connected 700V discharge path completely independent from the line that protects magnet and generator.
- High-Thermal capacity varistor discharge path.
- Peak magnet induced voltage limited to under 700 volts.
- Long electrical contact life. Minimum maintenance.
- Dribble control standard on 115V & 230V controllers.
- Ventilated Indoor/Outdoor NEMA 3R Enclosure.
- 5 to 100 Amps cold magnet current.
- Heavy-duty time proven components arranged to provide optimum control of your lifting magnets.
- Mechanically interlocked Lift and Drop NEMA rated mill duty contactors.
