NEW Bateman 5 Tine Grapples

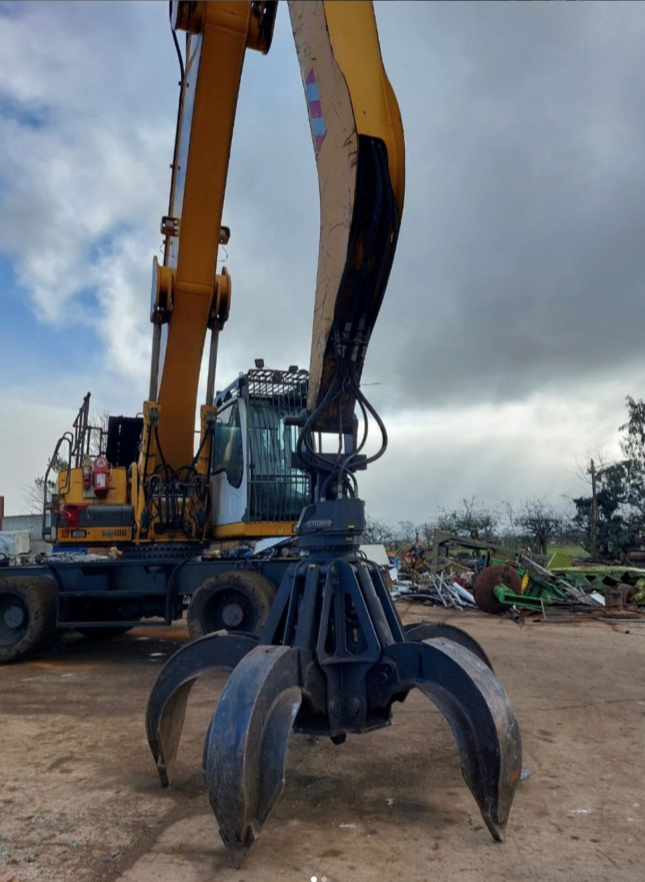

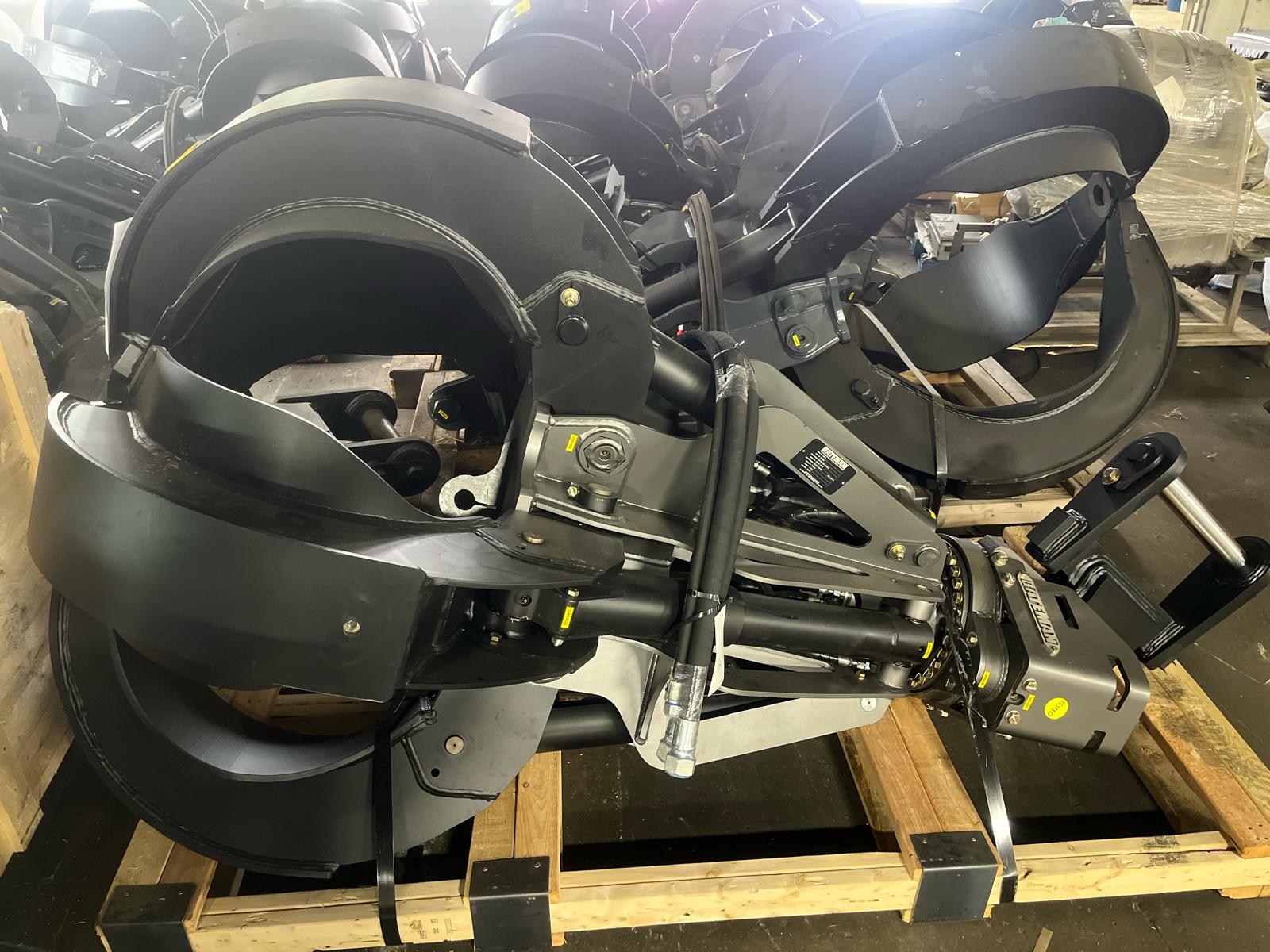

Bateman 5-Tine Grapple with 360° Rotation

Semi Closed Tines: 5 Tines
Rotation: Hydraulic 360° Rotation

IN STOCK: .75 cu yard, 1 cu yard, 1.25 cu yard, 1.5 cu yard

Built to dominate in high-throughput environments, the Bateman 5‑Tine Orange Peel Grapple delivers top-tier durability, penetration, and continuous performance for scrap handling and demolition tasks.

Key Features

• 5-Tine Orange Peel Design – Maximum material retention and faster cycle times, ideal for shredded scrap, auto bodies, and mixed debris.

• Heavy-Duty Construction – High-abrasion resistant tines with thicker backs, wear strips, hard-faced tips, and robust frame support for extended life.

• 360° Continuous Rotation – High-capacity, high-torque rotators allow full rotation under load for precise handling.

• Fully Protected Hydraulics – Double-wall cylinders with return-oil channels, fully enclosed hose guards, eliminating exposed chrome and minimizing damage risk.

• Low-Maintenance Design – Oversized pins with custom locknuts and improved bushings ensure longer life and easy servicing.

• Wide-Body Frame – Offers full cylinder protection and reinforced hose and flange area for added durability.

Available Models & Specs

160 Series – For 20–30 ton carriers

• Capacity: 0.5 – 1.5 m³

• Weight Range: 3,680 – 4,420 lbs

• Tip-to-Tip Width: 71 – 106 in

210 Series – For 35–50 ton carriers

• Capacity: 1.25 – 3.0 m³

• Weight Range: 5,775 – 6,845 lbs

• Tip-to-Tip Width: 101 – 139 in

Tip: Choose open, semi-closed, or fully closed tine configurations based on your material type.

Ideal Applications

• Heavy-duty scrap yards

• Recycled shredded metal

• Demolition debris handling

• Auto salvage operations

• Waste transfer and recycling stations

Mounting Compatibility

Fits most major carriers, including Cat, Doosan, Hitachi, SANY, Sennebogen, Liebherr, Link‑Belt, Fuchs, and more.

Options

• Open, semi-closed, or fully closed tine styles

• Hardfacing available for extreme wear conditions

• Available with magnet lug, jumper hoses, and pin-on or quick-coupler yokes

Request a Quote

Need help selecting the right model? Click “Request a Quote” or contact us for personalized sizing, fitment, pricing, and details
