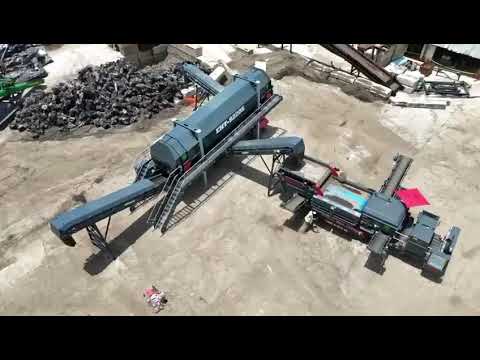

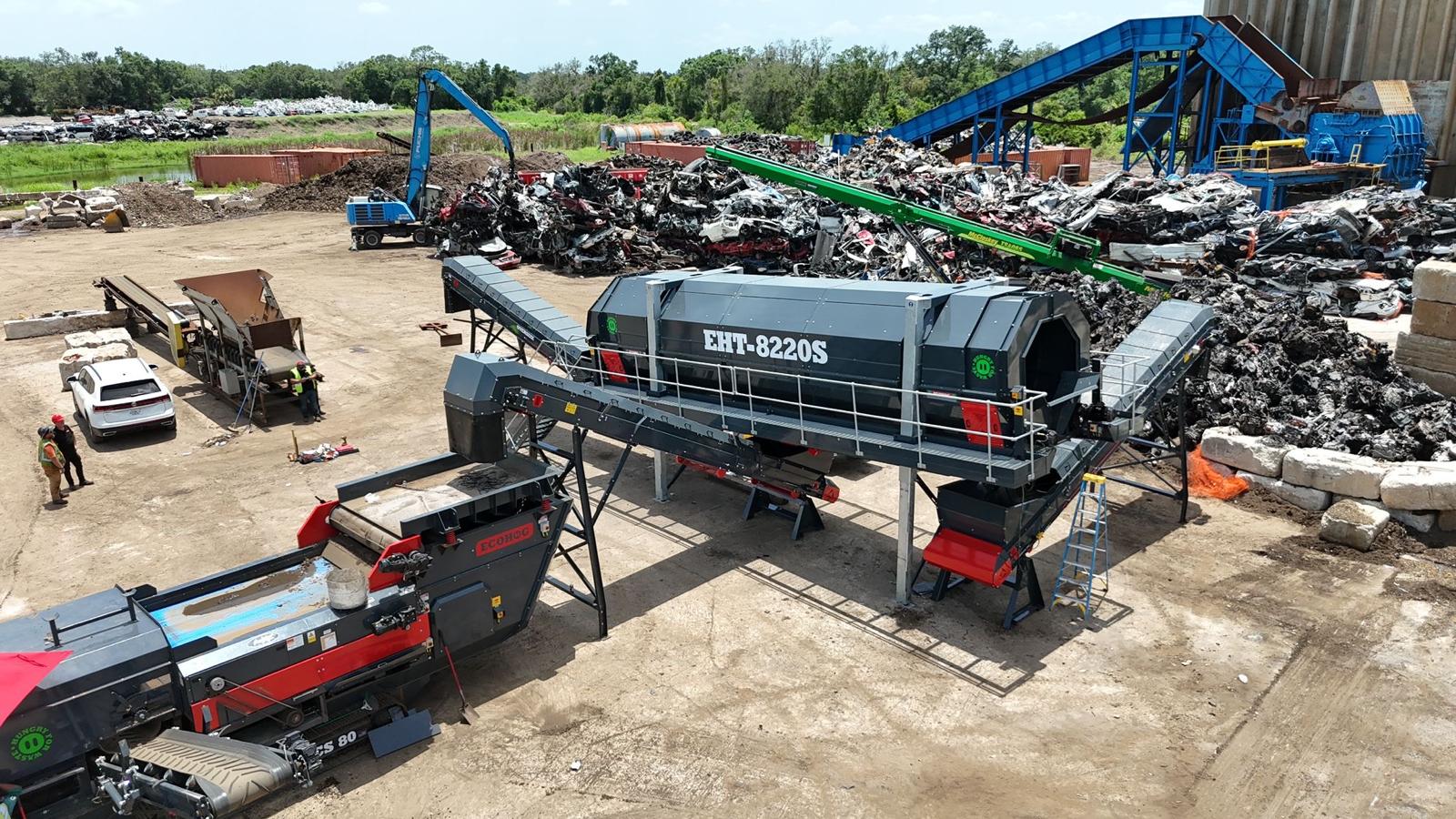

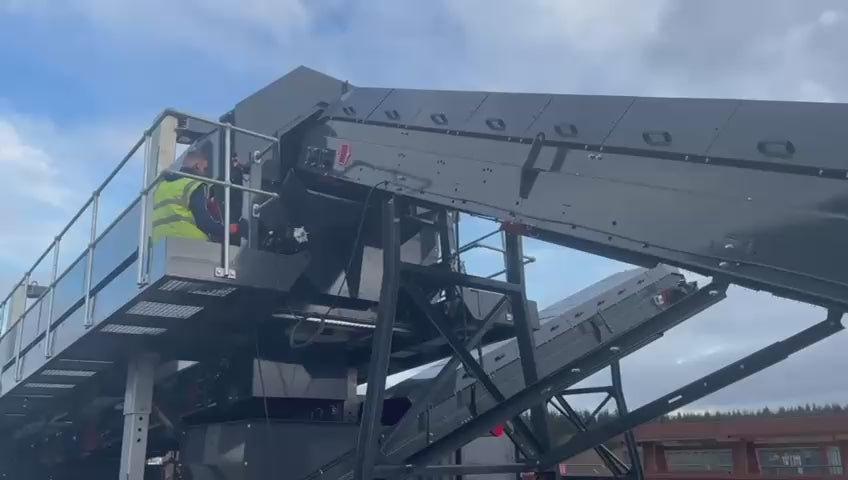

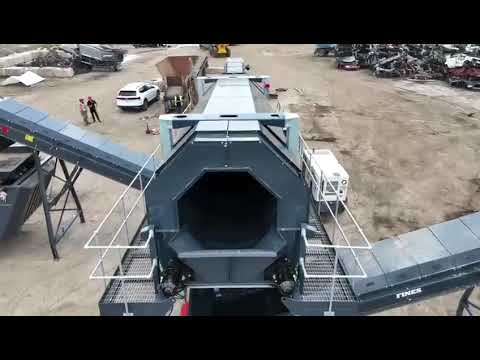

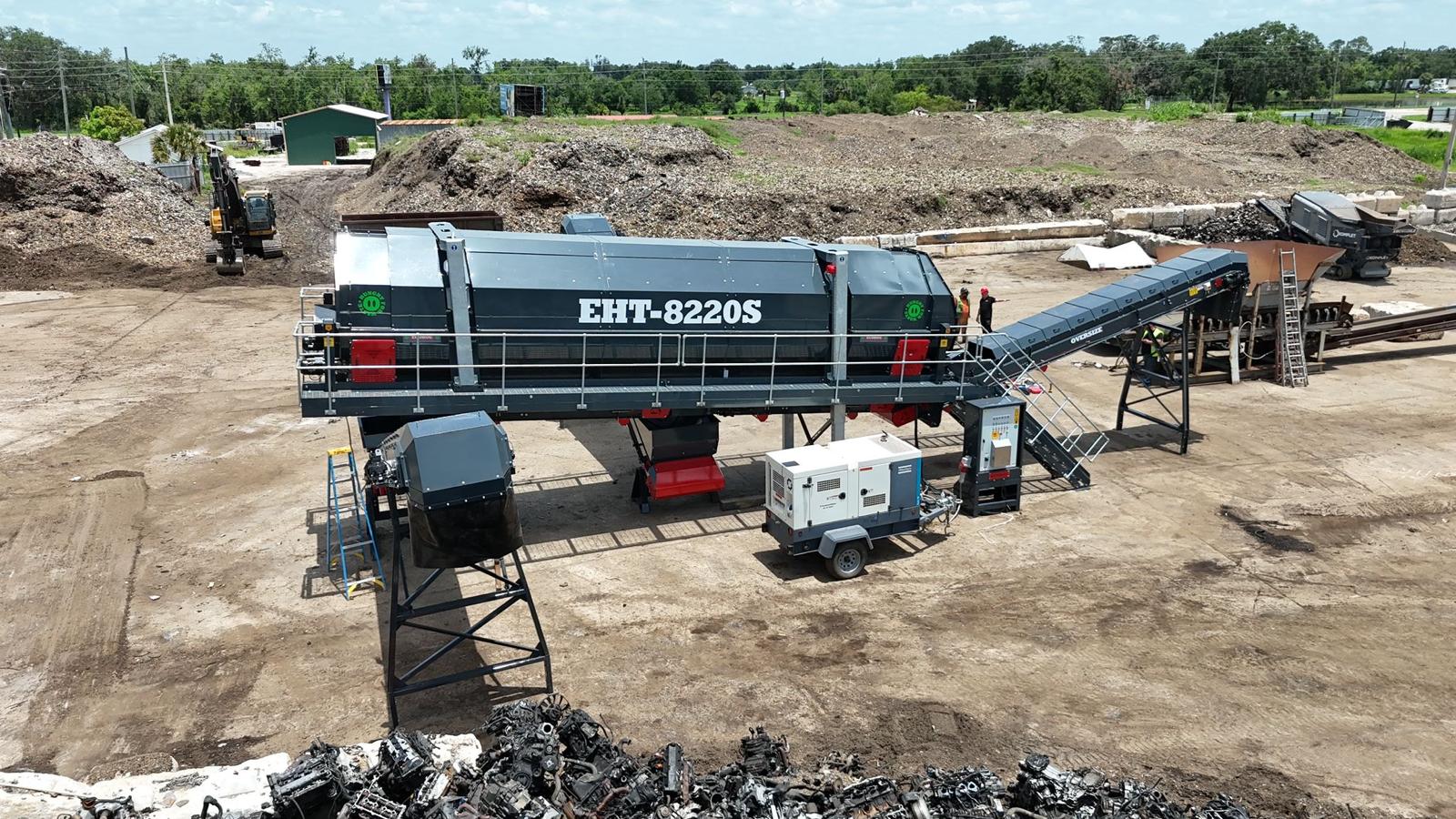

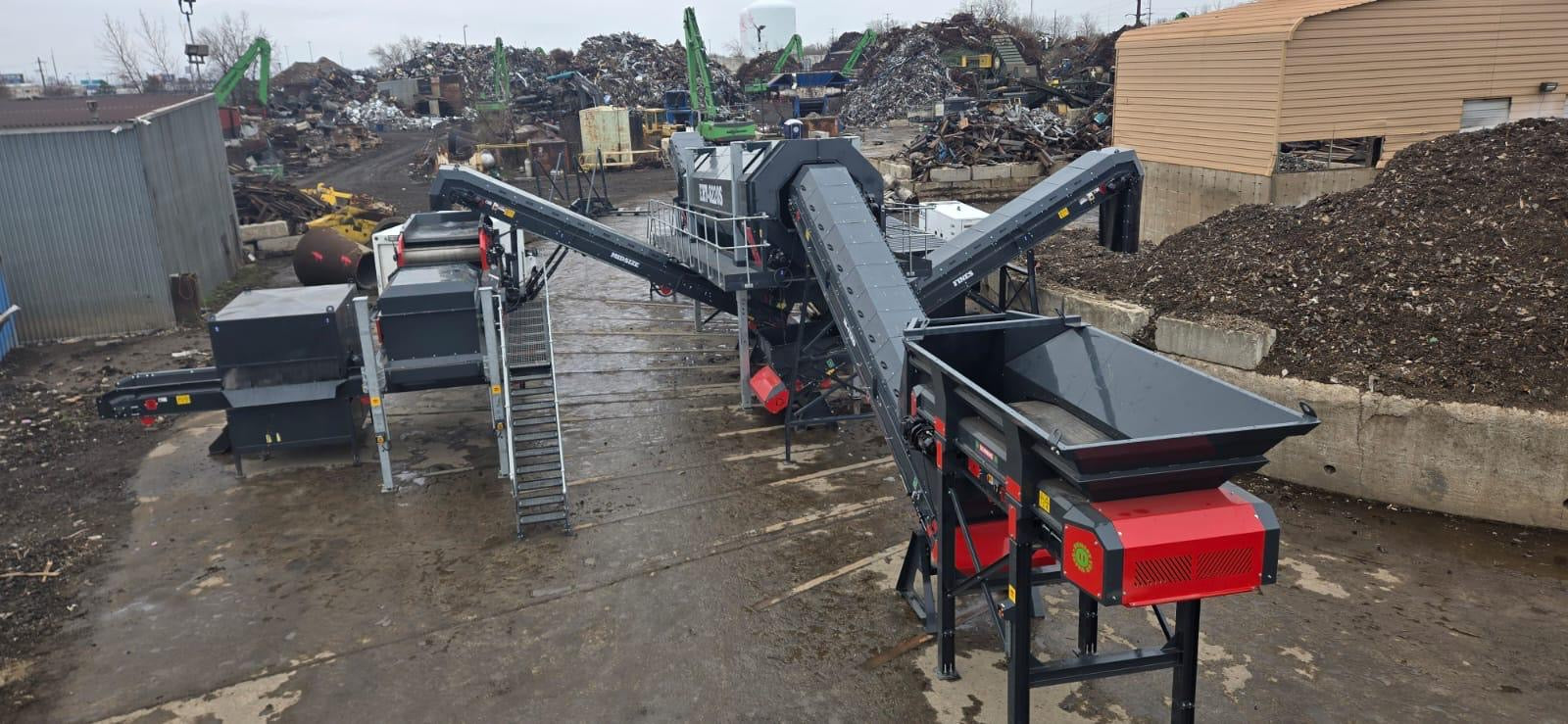

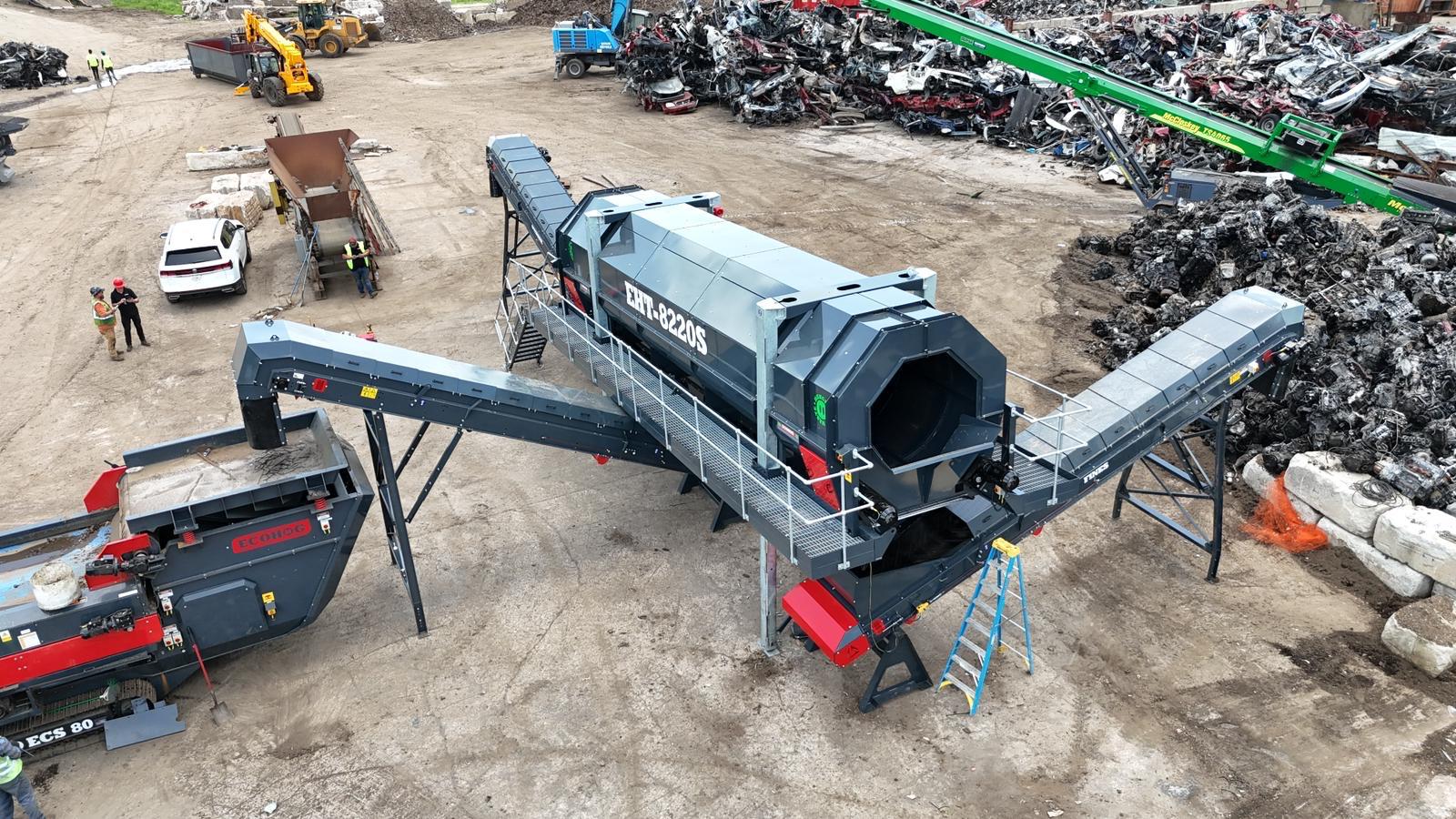

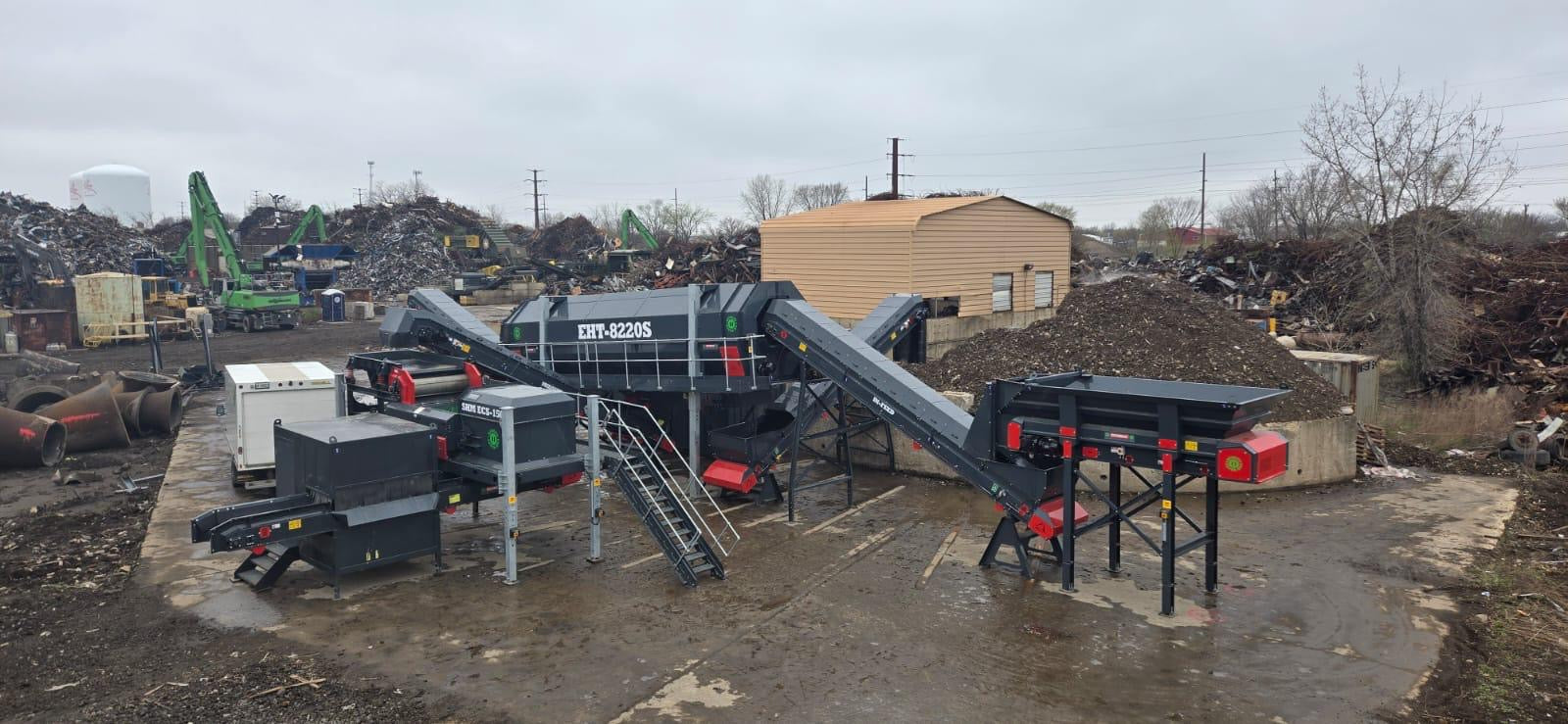

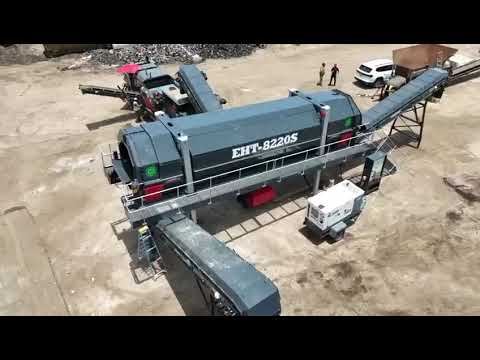

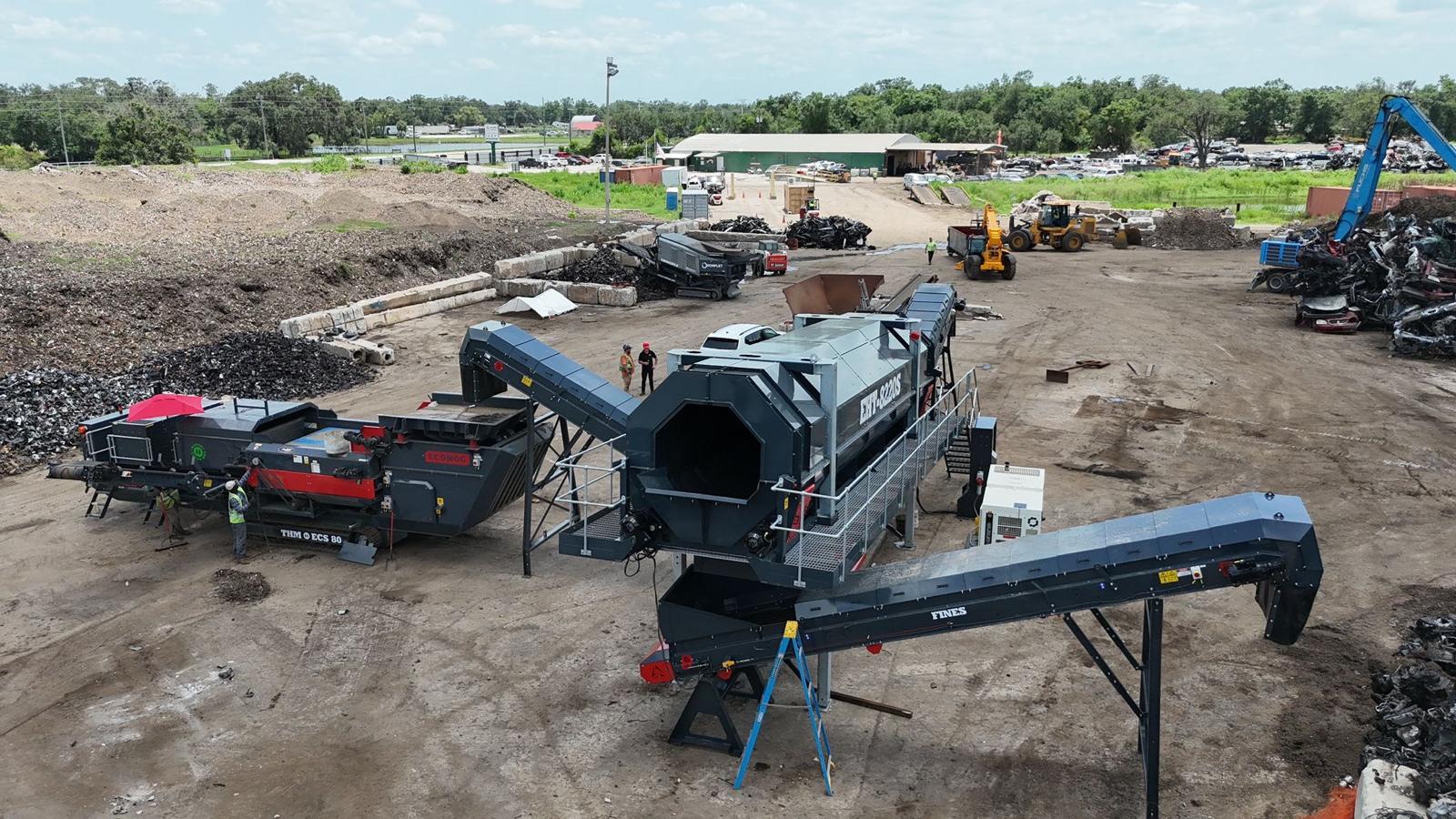

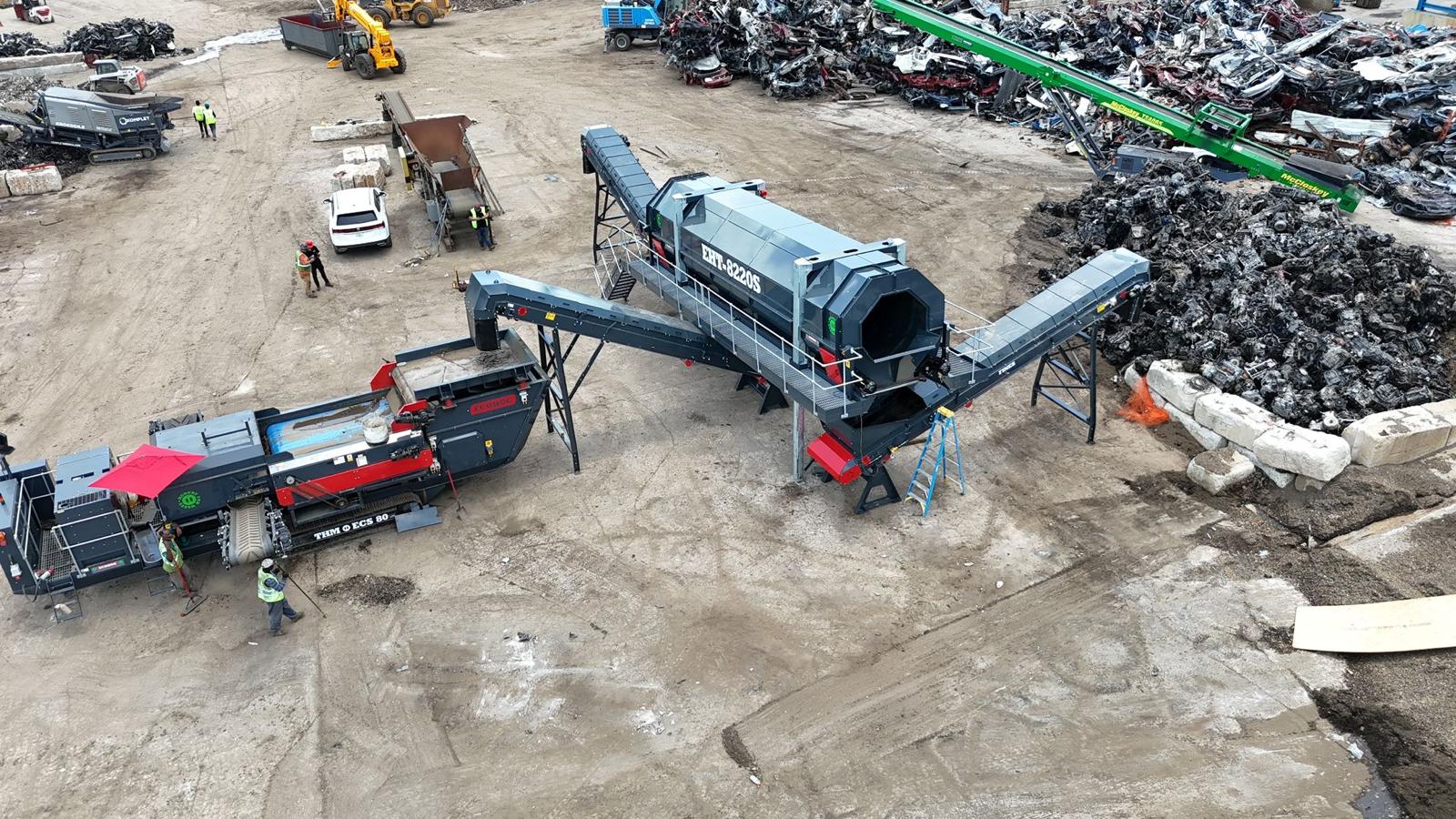

The EcoHog EHT-8220S Trommel Screen features a 2-meter diameter and 8-meter length drum with optional punch plate screens ranging from 15mm to 100mm. It includes a fully enclosed drum with a 35mm round design, supported by a mild steel frame tailored to customer specifications. Powered by electric drum rotation motors and a four-wheel drive system, the horizontal drum uses a spiral design to facilitate material transfer and is easily removable for maintenance, with a one-piece door opening on both sides. The system includes multiple conveyors—each with a 4kW motor and chevron belt—positioned for efficient material collection and optional stockpiling, all constructed from painted mild steel with support legs. Controls feature sequenced operation with variable speed drum rotation and direct-on-line conveyors, plus an emergency stop circuit. Designed for heavy-duty recycling applications, this modular trommel can separate up to three material fractions using nearly half-inch thick punch plates, making it suitable for scrap metal, waste wood, construction debris, municipal solid waste, and more. Each conveyor and trestle is clearly labeled for easy setup, and all electrical connections are plug-and-play, simplifying installation and reducing operational costs without requiring specialist support. This robust machine is engineered to meet diverse screening needs efficiently and reliably.

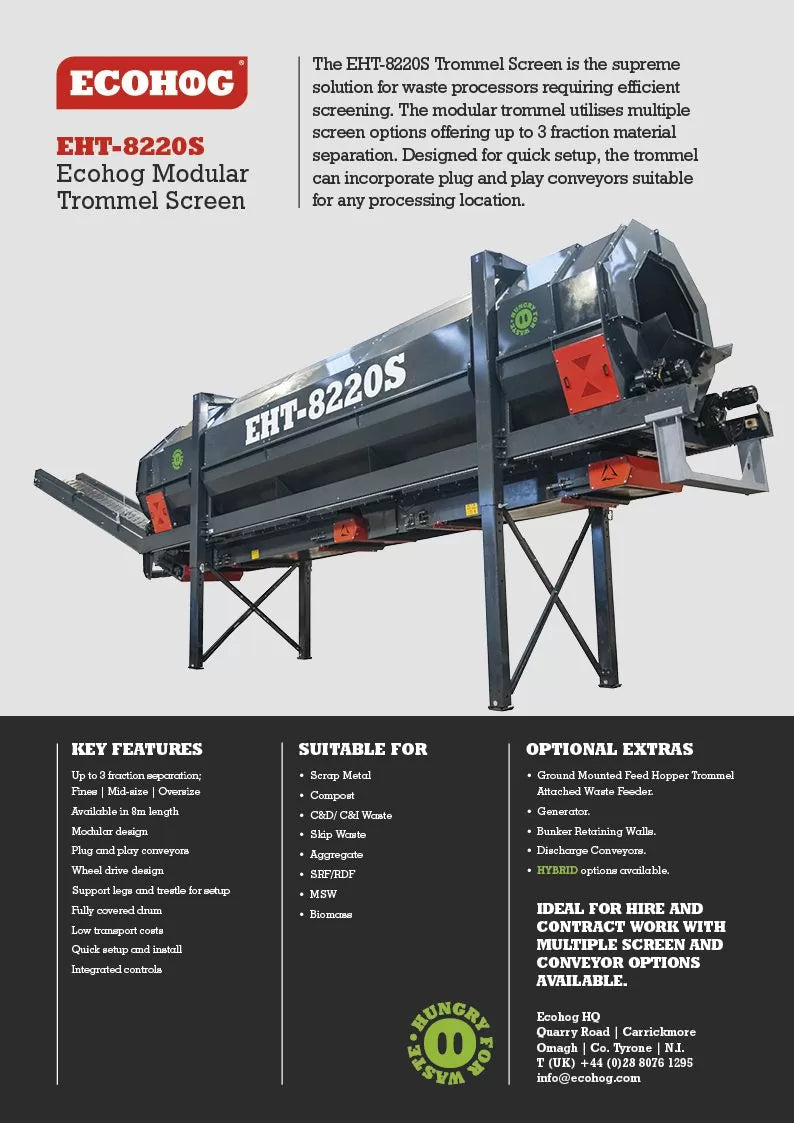

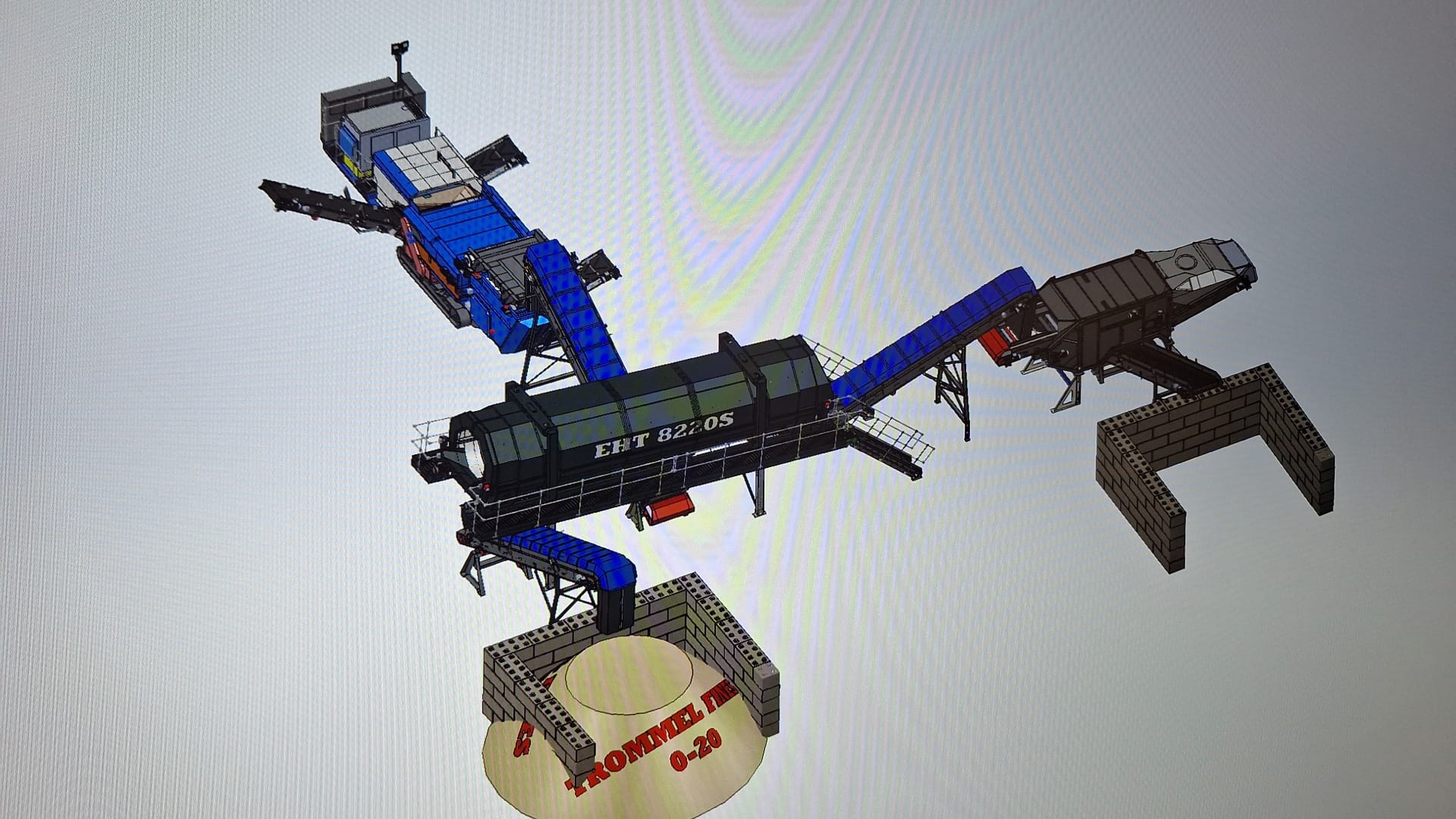

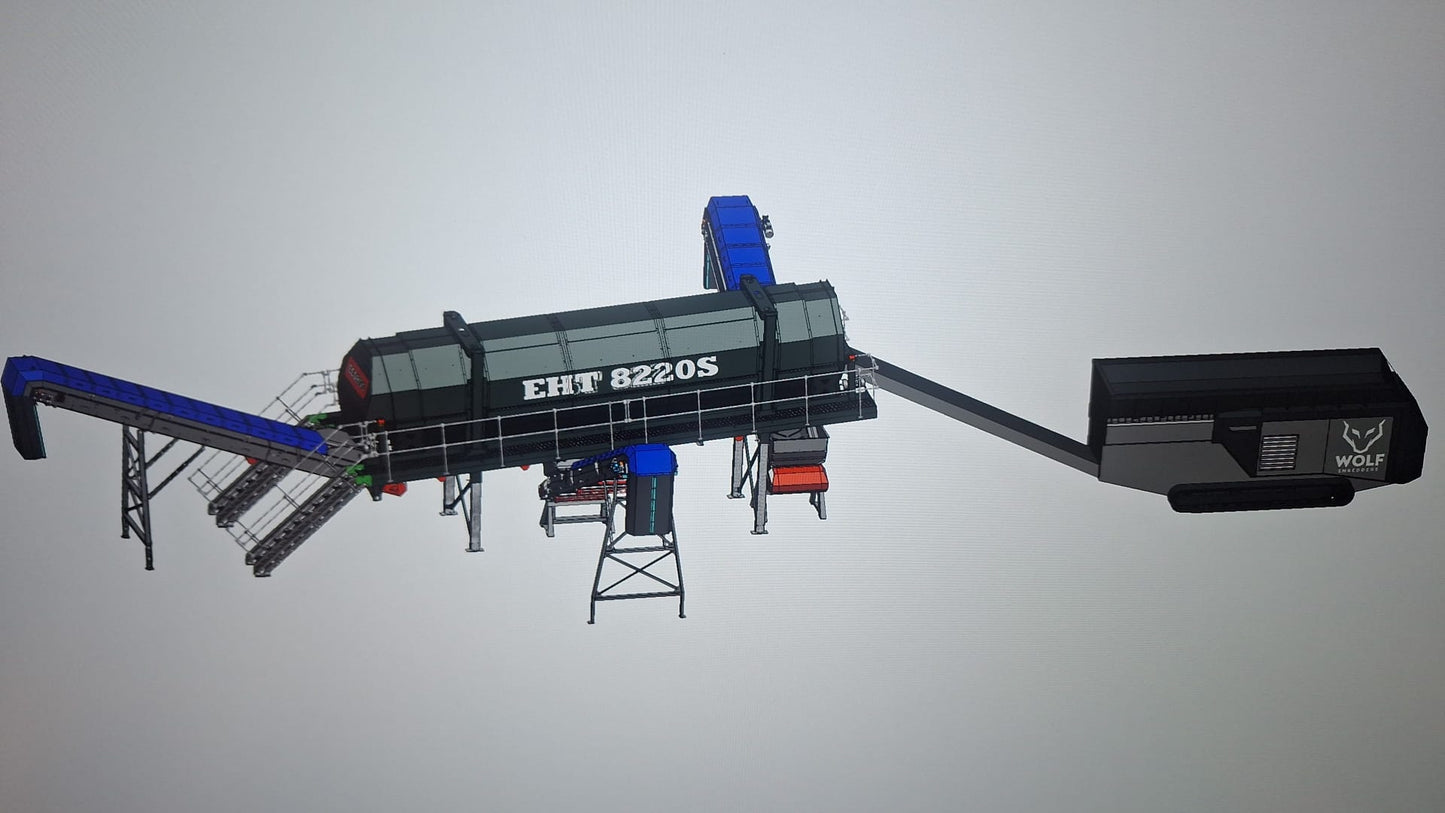

The EcoHog EHT-8220S Trommel Screen enables separation into three fractions—fines, mid-size, and oversize—within an 8-meter modular configuration. It includes plug-and-play conveyors, a wheel-driven system, and support legs with a trestle for easy assembly. The fully enclosed drum promotes efficient operation, while integrated controls facilitate straightforward management. Engineered for low transportation costs and fast installation, this screen is well-suited for processing scrap metal, compost, C&D/C&I waste, skip waste, aggregate, SRF/RDF, MSW, and biomass.
