Accelerator/FEED belt details BLOWER FANS SEPARATOR DRUM DISPERSION CHAMBER WINDSHIFTER HOUSING CONSTRUCTION ADJUSTABILITY CHUTE 1 – Heavy fraction CONVEYOR 1 – STANDALONE Heavy fraction discharge CONVEYOR 2 WITH CANOPY– Light fraction SUPPORT STRUCTURE- Manual Legs SEQUENCED CONTROLS POWER SUPPLY- OPTIONAL GENERATOR or CUSTOMER MAINS

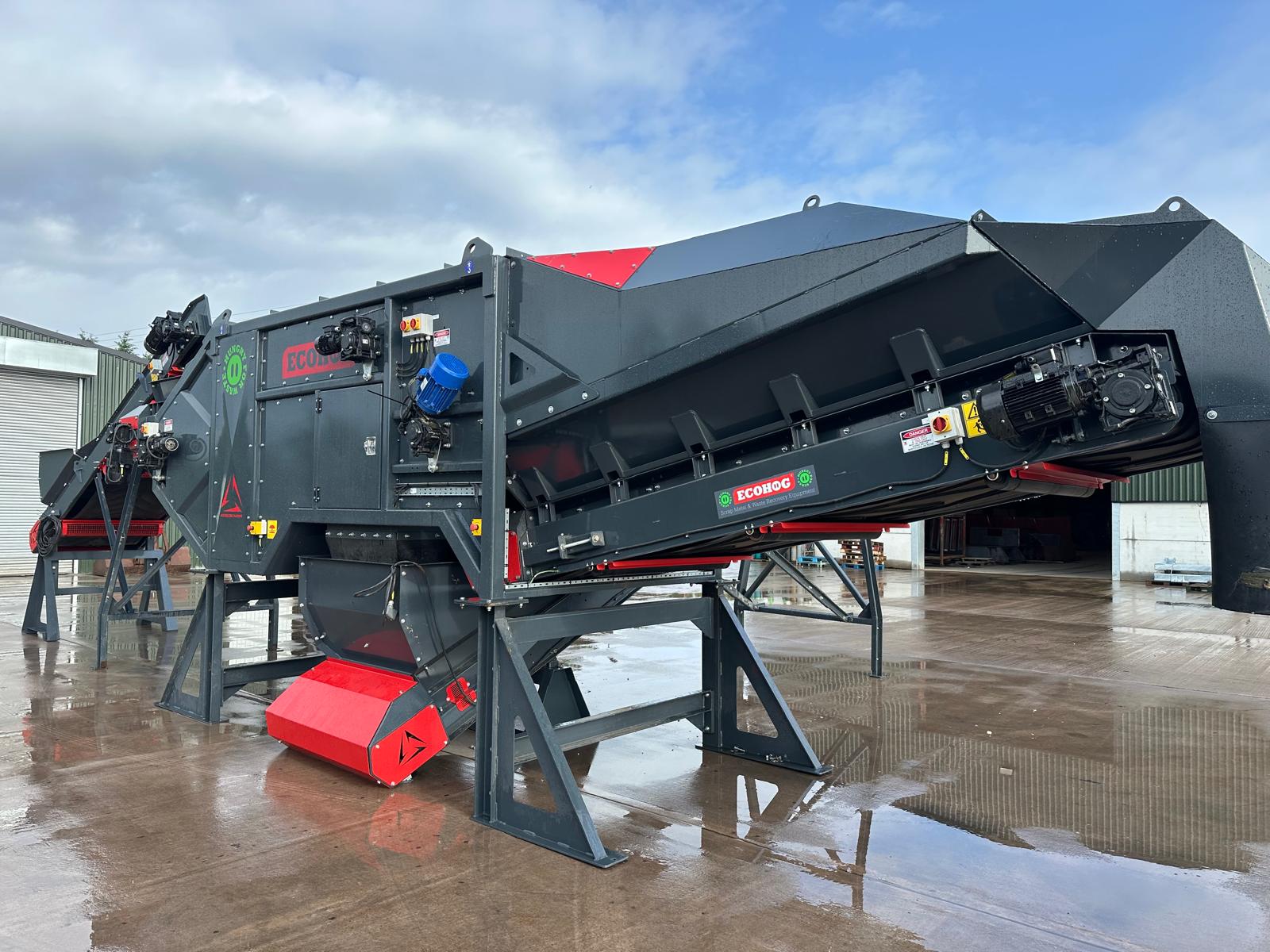

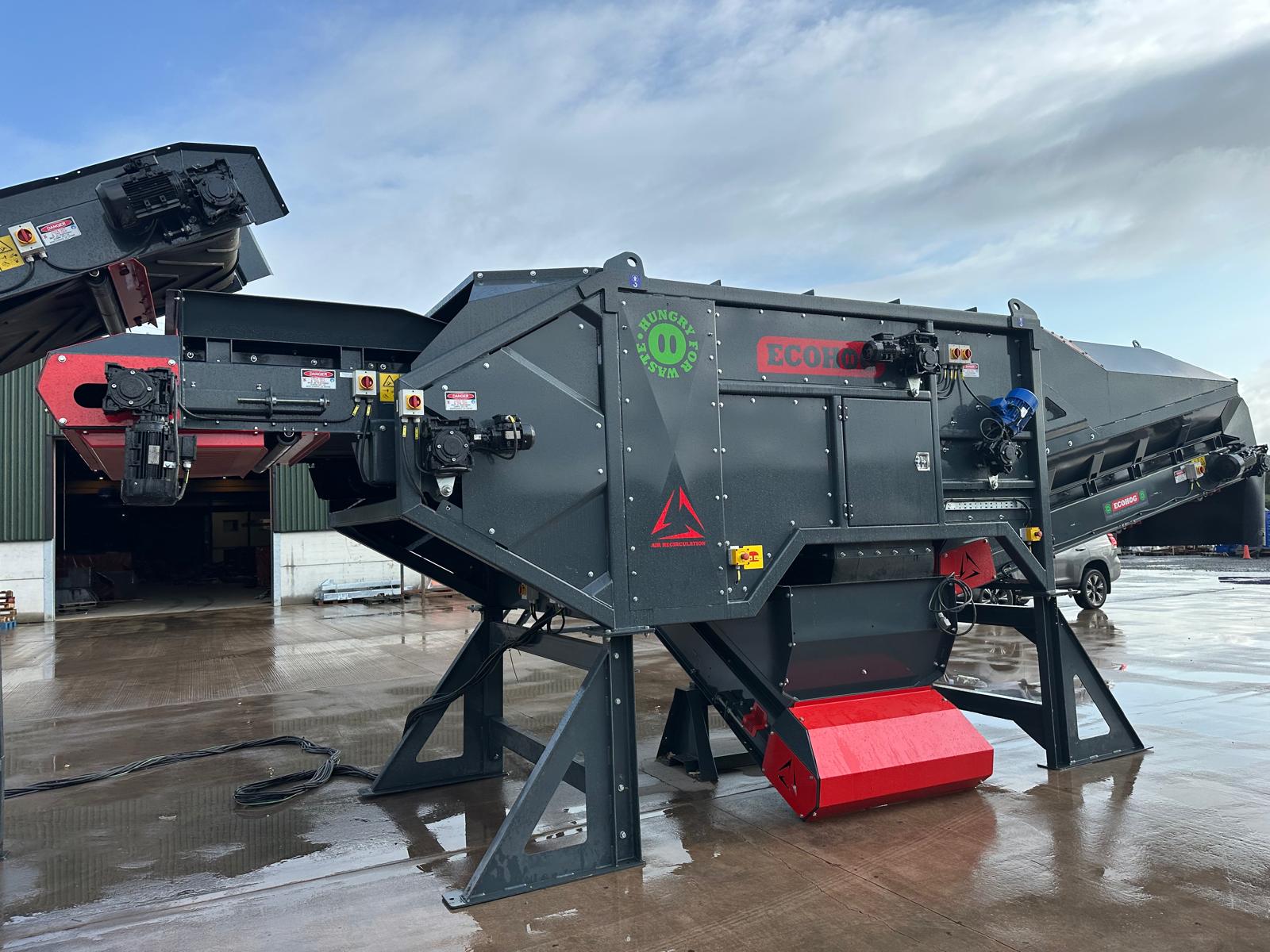

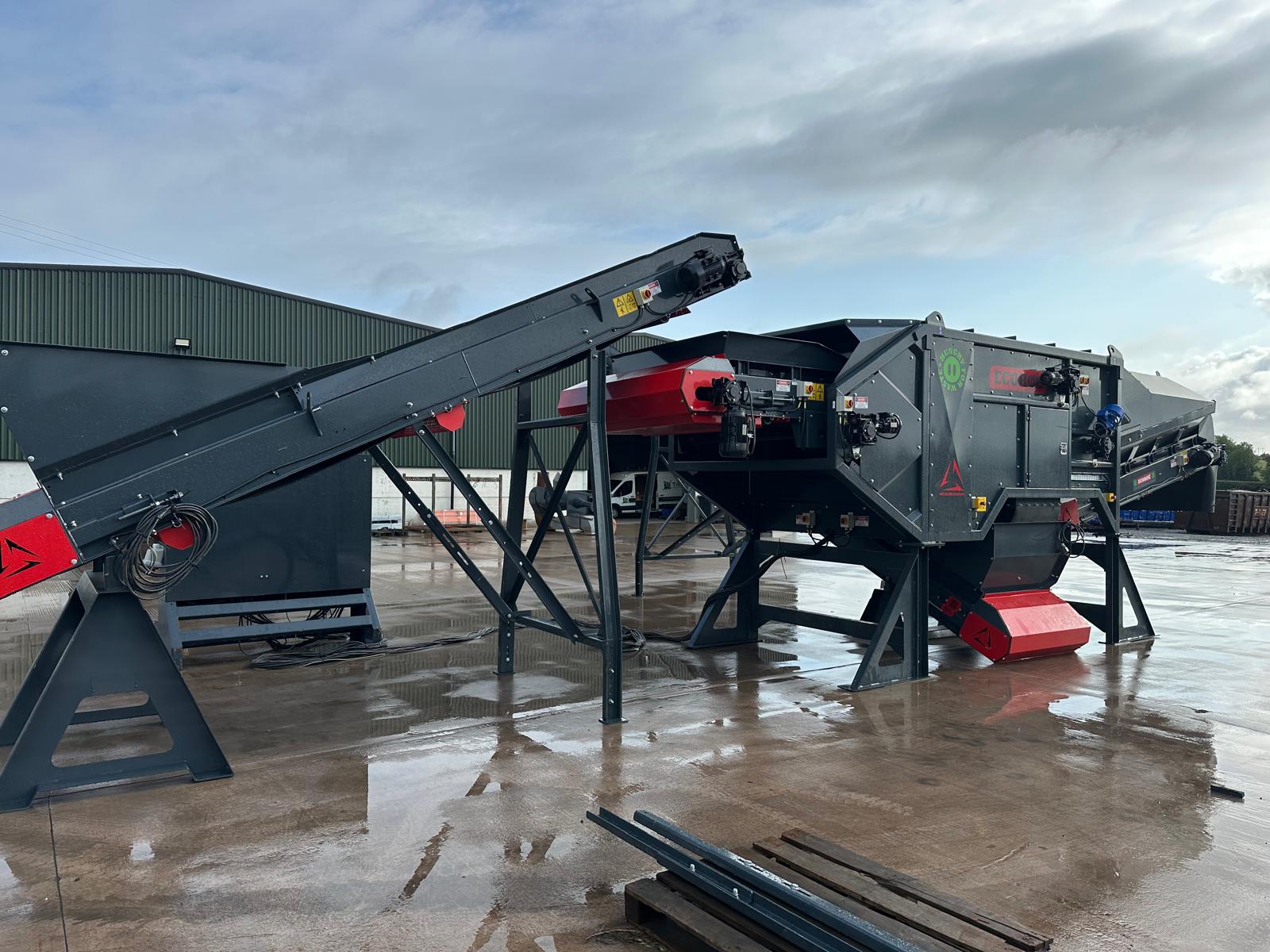

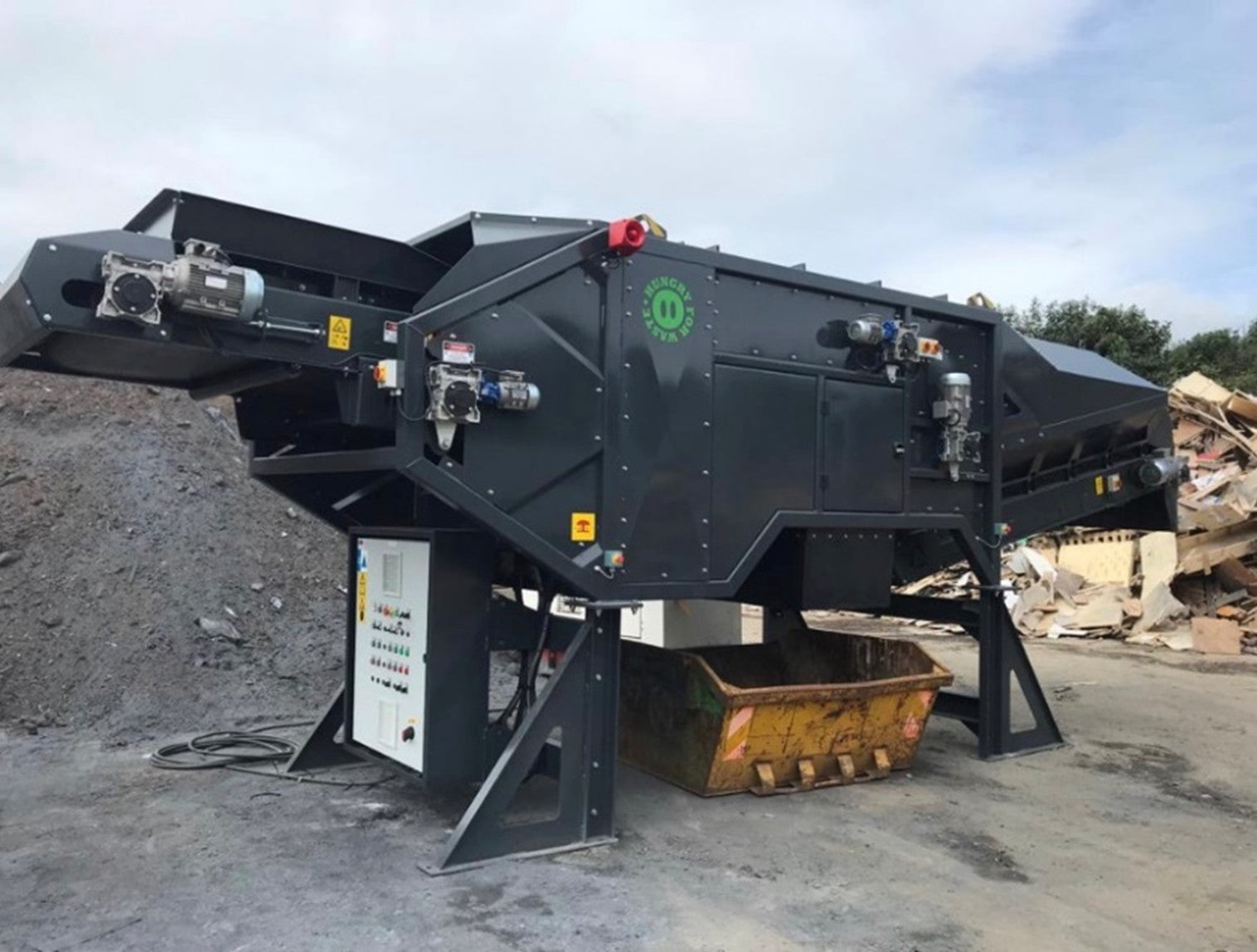

The EH1500-SM1 Windshifter features a 1500mm wide EP 400/3 feed belt operating at 1.6 m/s, driven by a 4.0 kW motor. Its blower fans are designed with adjustable inlets and air-knives to direct airflow precisely between the drum and conveyor, optimizing material separation. The separator drum is a 550 mm diameter steel pipe powered by a 3 kW drive. The dispersion chamber allows material to settle post-process, venting 10% of air while recycling 90%, and includes a rubber curtain for container lining. Constructed with a bevelled profile steel frame, the accelerator belt and air-knife can be adjusted vertically and horizontally, with variable drum speed. Two conveyors manage heavy and light fractions separately, supported by manual legs and controlled through sequenced VSD and DOL drives. This modular system efficiently separates materials up to 300 mm by density, ideal for sorting metals from waste.
