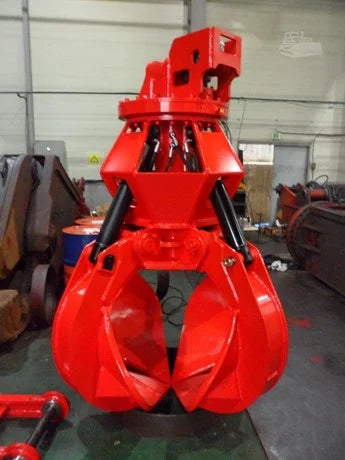

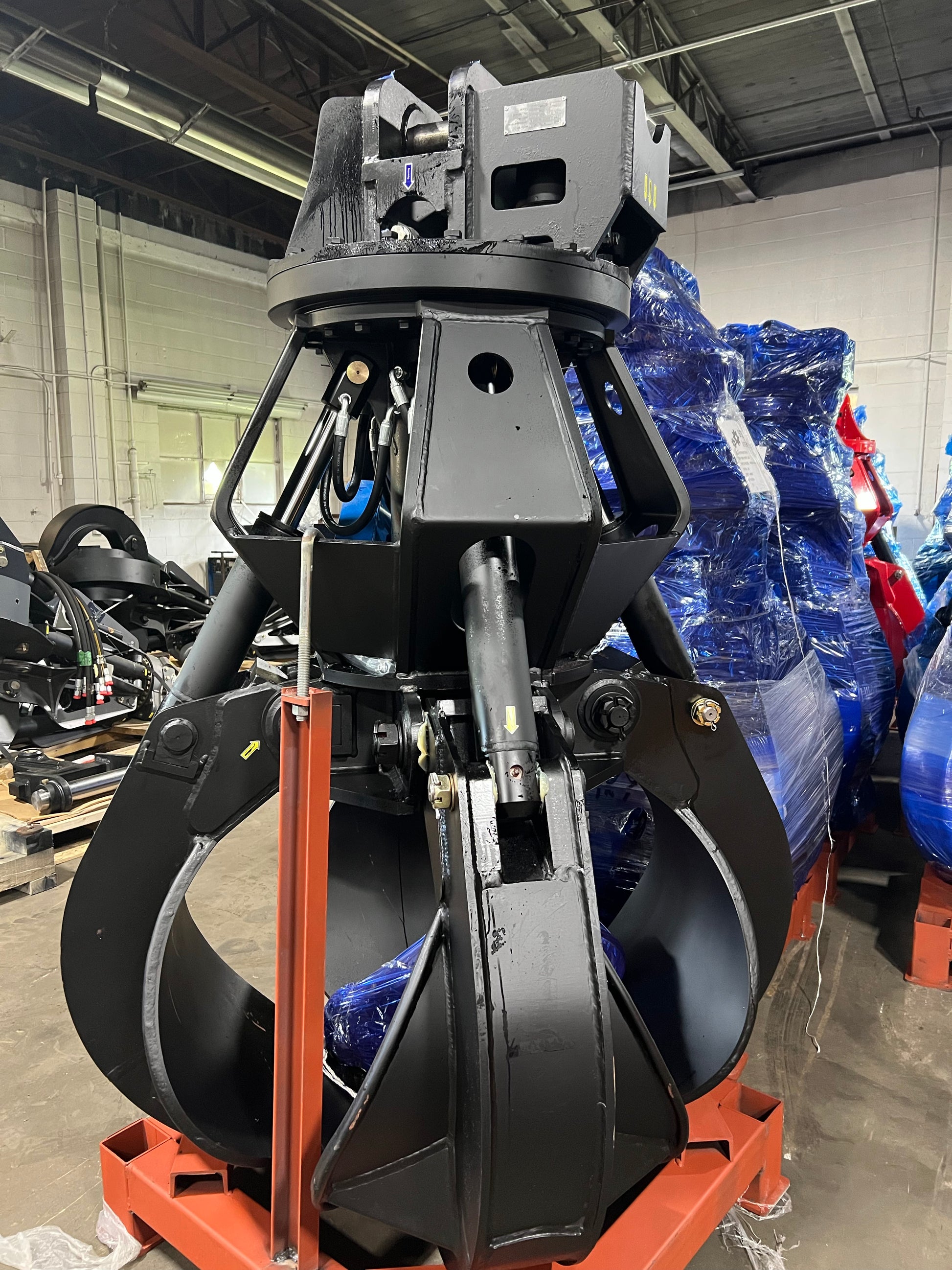

NEW ProLift 4 tine Grapple

High-Efficiency Medium-Duty Orange Peel Grapple

The NEW ProLift 4-Tine Grapple delivers the perfect combination of a lightweight design and rugged durability for everyday material handling. Cost-efficiently engineered to maximize utility without overloading your machine, this orange peel style grapple is built to streamline the loading, unloading, and management of various high-volume commodities.

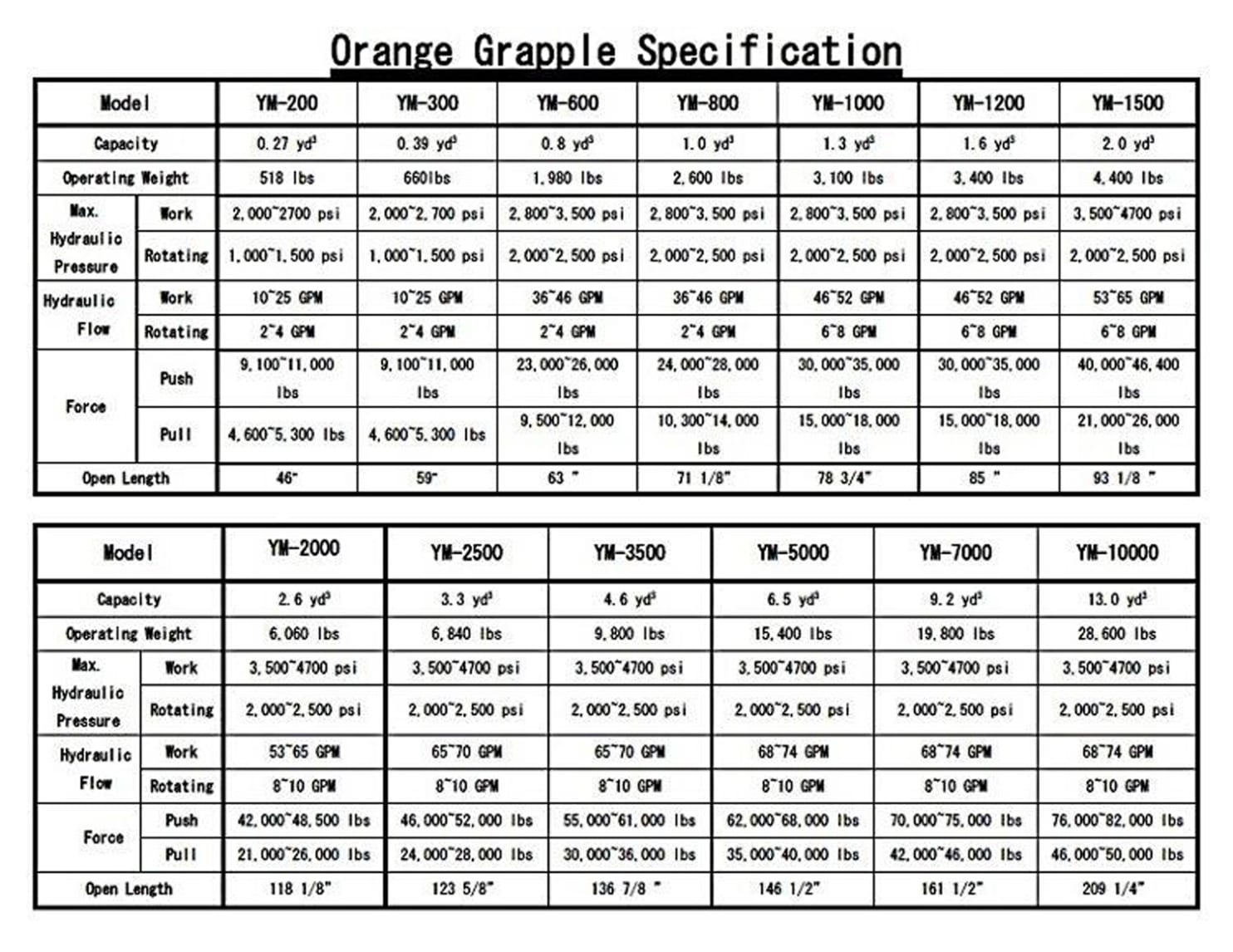

Key Performance Specifications

• Manufacturer: ProLift
• Standard Configuration: 4-Tine (5-Tine standard and custom 6-Tine options available)
• Tine Styles: Available in Open, Semi-Closed, or Closed configurations
• Cutting Edges: Specialized HARDOX 400 wear-resistant steel
• Rotator: Oversized hydraulic rotator with integrated motor and brake valve

Advanced Engineering & Component Protection

• Heavy-Duty Tine Guards: Engineered to minimize costly job site downtime, the hydraulic cylinders are fully safeguarded by heavy-duty structural tine guards.
• Inverted Cylinder Design: Cylinder rods are securely mounted on the top grapples, shielding them from direct impact and abrasive debris during intense loading cycles.

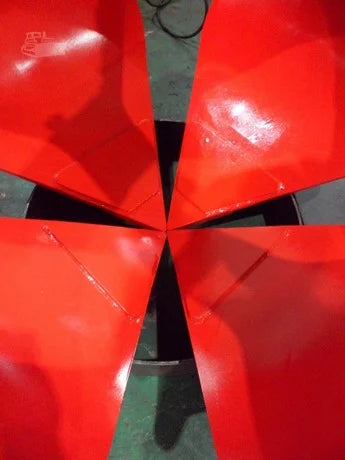

• HARDOX 400 Tine Edges: Constructed with genuine HARDOX 400 steel to provide superior resistance to abrasion, ensuring extended service life and reliable material penetration.
• Precision Rotation Control: The oversized hydraulic rotator features an integrated brake valve, delivering high-torque, drift-free maneuvering over continuous, extended use.
• Multi-Material Versatility: High-efficiency sorting and handling for steel scrap, waste paper, loose wood, and mixed industrial waste.
