Rotobec 4 Tine 2 Cu Yd Grapple | ID: 841

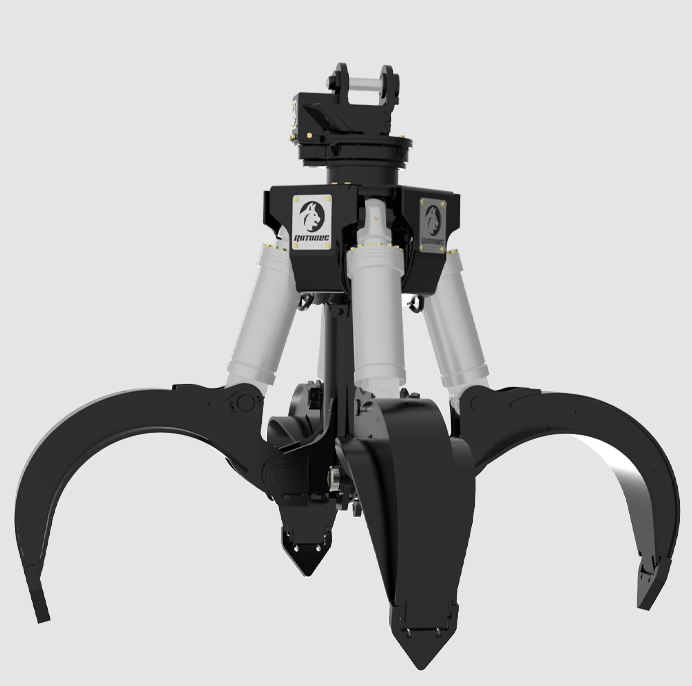

Rotobec OP4S200-RT1002O4 Orange Peel Scrap Grapple (2.00 Cu. Yd.)

Engineered for high-volume scrap yards and heavy material handling, the Rotobec OP4S200-RT1002O4 is a heavy-duty, semi-closed 4-tine orange peel grapple. Complete with an RT-1002OR continuous rotator, 1000 Series yoke assembly, and OEM jumper hoses, this plug-and-play attachment is built to maximize productivity in demanding recycling environments.

Key Features & Highlights

• 2.00 Cu. Yd. Capacity: High-volume capacity designed for efficient cycle times and heavy scrap throughput.
• Semi-Closed Tines Option: Configured specifically for the OP4-200 to maximize retention of loose scrap metal, mixed debris, and odd-shaped materials.
• RT-1002OR Rotation: Heavy-duty, 360° continuous rotation gives operators precise control during loading and sorting.
• Complete Yoke Setup: Includes Female/Male Yoke for 1000 series rotators with the upper pin included for direct machine mounting.
• OEM Jumper Hoses Included: Comes equipped with factory jumper hoses to protect hydraulic lines and simplify installation.
• Protected Hydraulics: Integrated internal hydraulic channeling protects cylinder lines from job-site impacts.

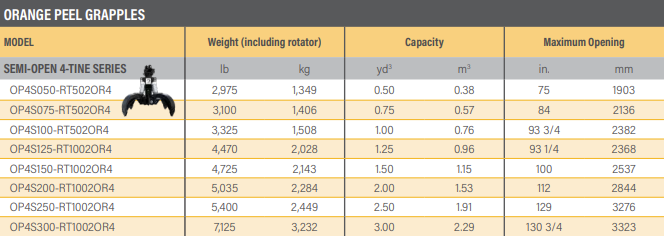

Technical Specifications
