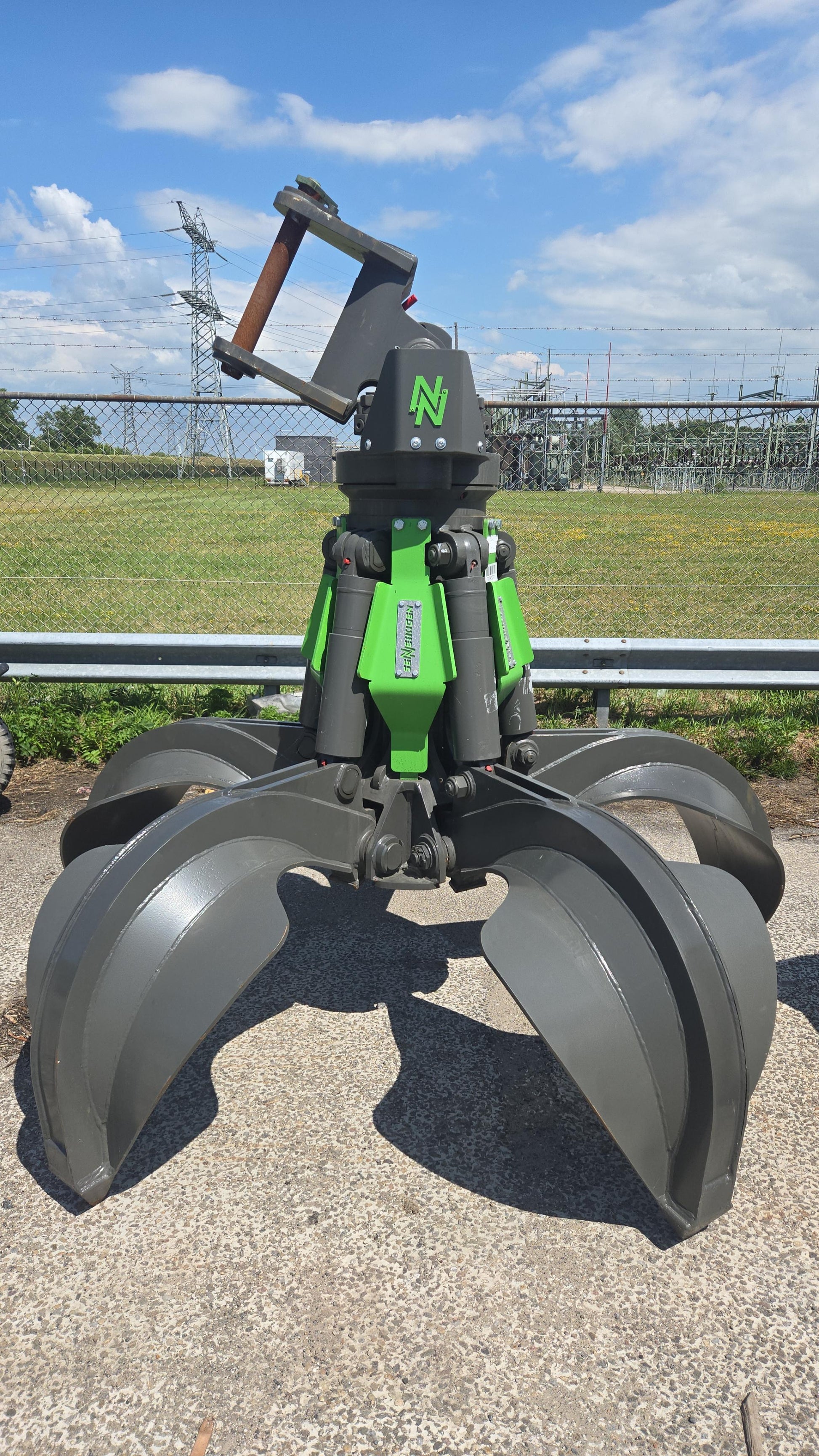

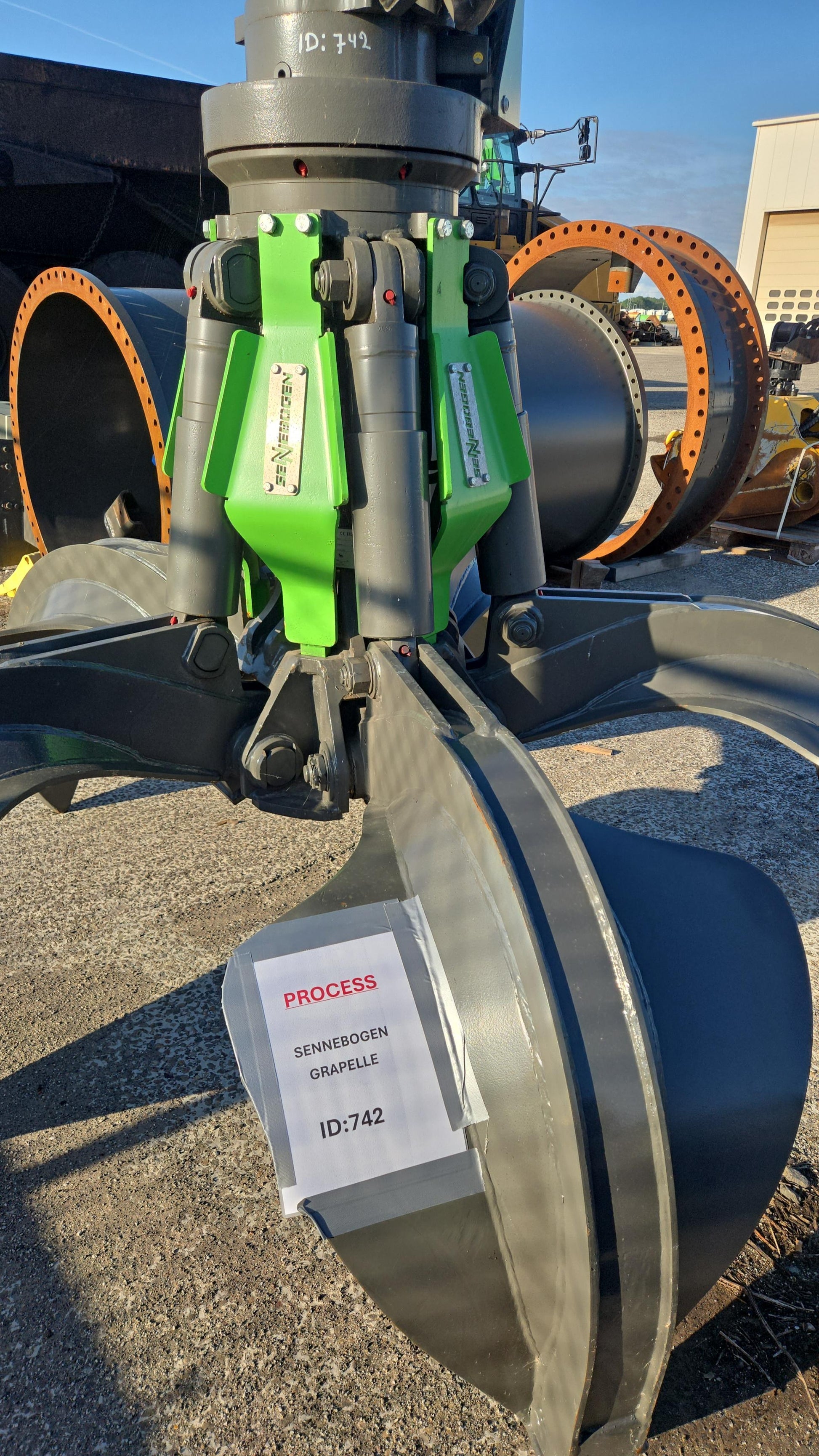

Sennebogen SGM 5 Tine 1.0 Cu Yd Grapple | ID: 742

The Sennebogen SGM Series 5-Tine Orange Peel Grapple is the industry's premier choice. Designed by the global leaders in material handling, this high-performance grab features a generous 1.0 Cubic Yard capacity, delivering the perfect balance of deep pile penetration and maximum material volume. It is engineered to keep your material handler running at absolute peak efficiency.

Designed & Coordinated for Maximum Throughput

Unlike generic attachments, the SGM series is engineered to perfectly match the high-pressure hydraulics of world-class material handlers. Featuring a continuous hydraulic rotary drive, this grapple provides high-torque 360° rotation for precise, rapid sorting. Optimized internal fluid paths maximize oil flow cross-sections, giving your operator lightning-fast opening times and massive closing forces under heavy pressure.

Built to Survive the Toughest Scrapyards

• Optimized 5-Tine Geometry: Distributes clamping force evenly, guaranteeing an aggressive hold on highly irregular, bulky materials like loose scrap, municipal waste, and industrial debris.
• Heavy-Duty Construction: Built with high-strength cast steel crossbeams and abrasive-resistant tines to endure grueling daily cycles in high-abrasion environments.

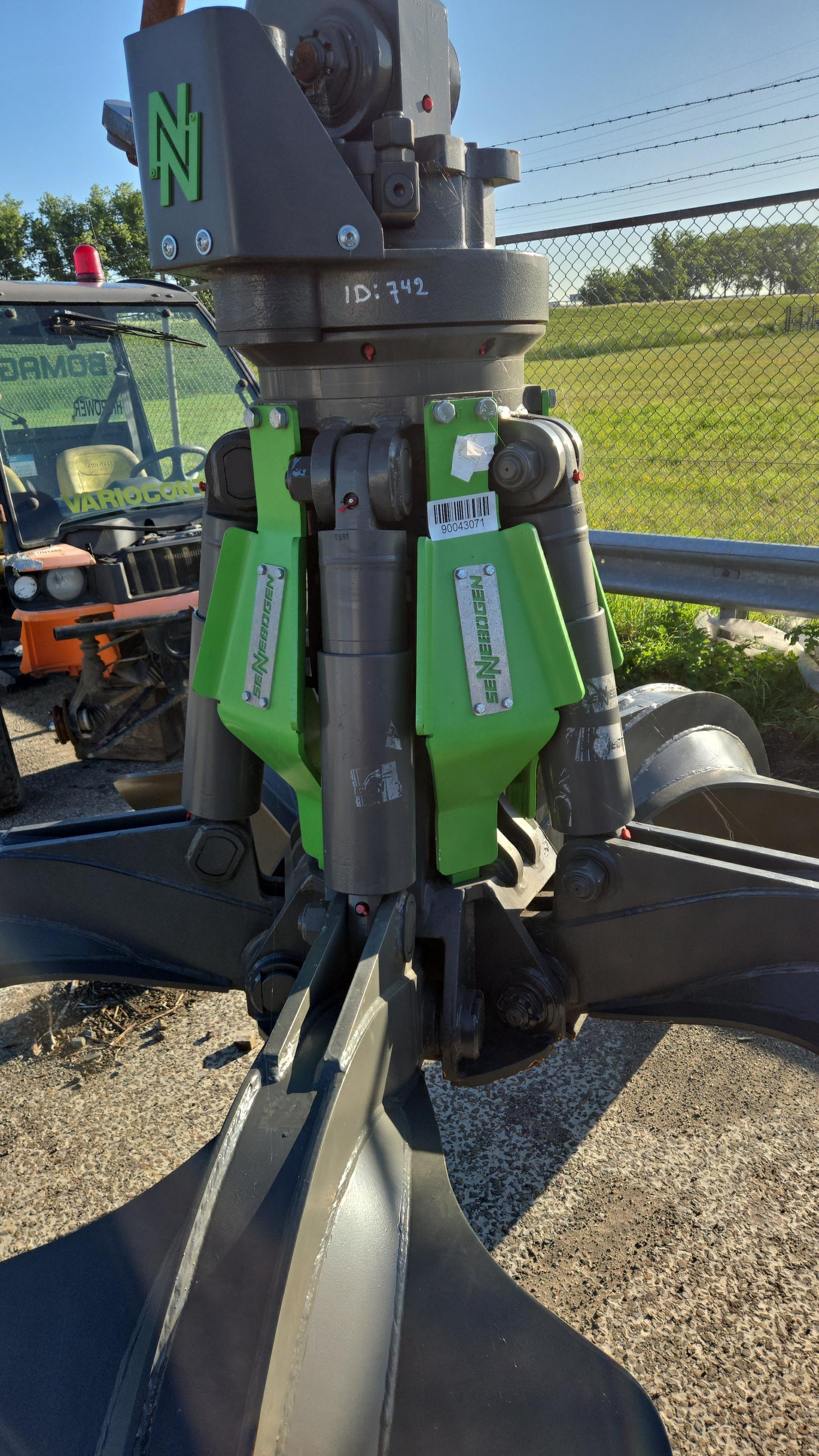

• Protected Hydraulics: Equipped with robust, self-contained hydraulic cylinders featuring end-position damping, hardened piston rods, and integrated heavy metal guards to block flying debris.

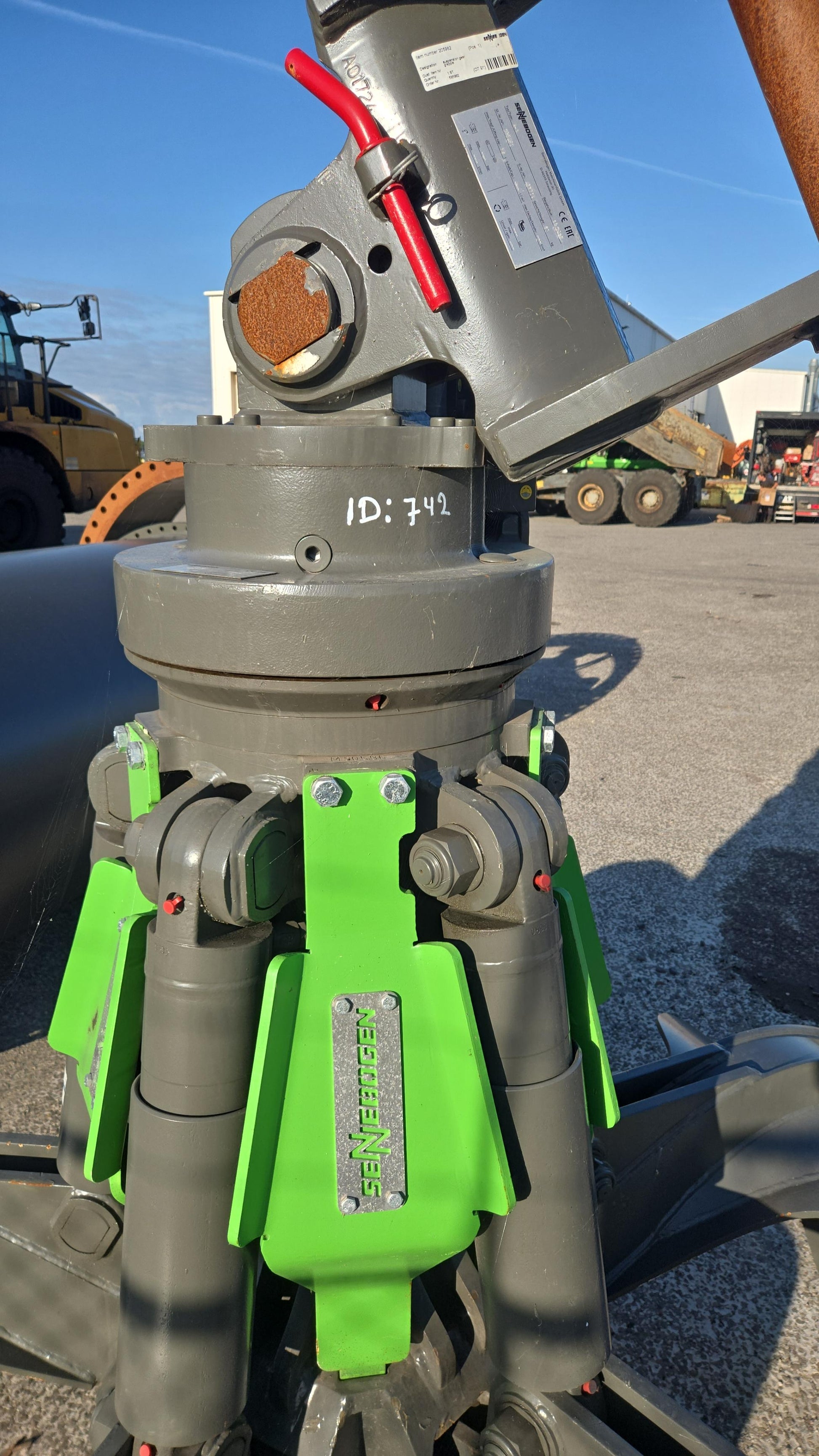

• Heavy-Duty Rotary Drive: A capsuled DKS rotator drive absorbs heavy axial and radial shock loads while keeping dirt and grime completely sealed out.
• Long-Wear Tips: Interchangable shell tips are forged from manganese steel to ensure maximum lifespan and ultra-low maintenance costs.

Technical Specifications

Specification	Details

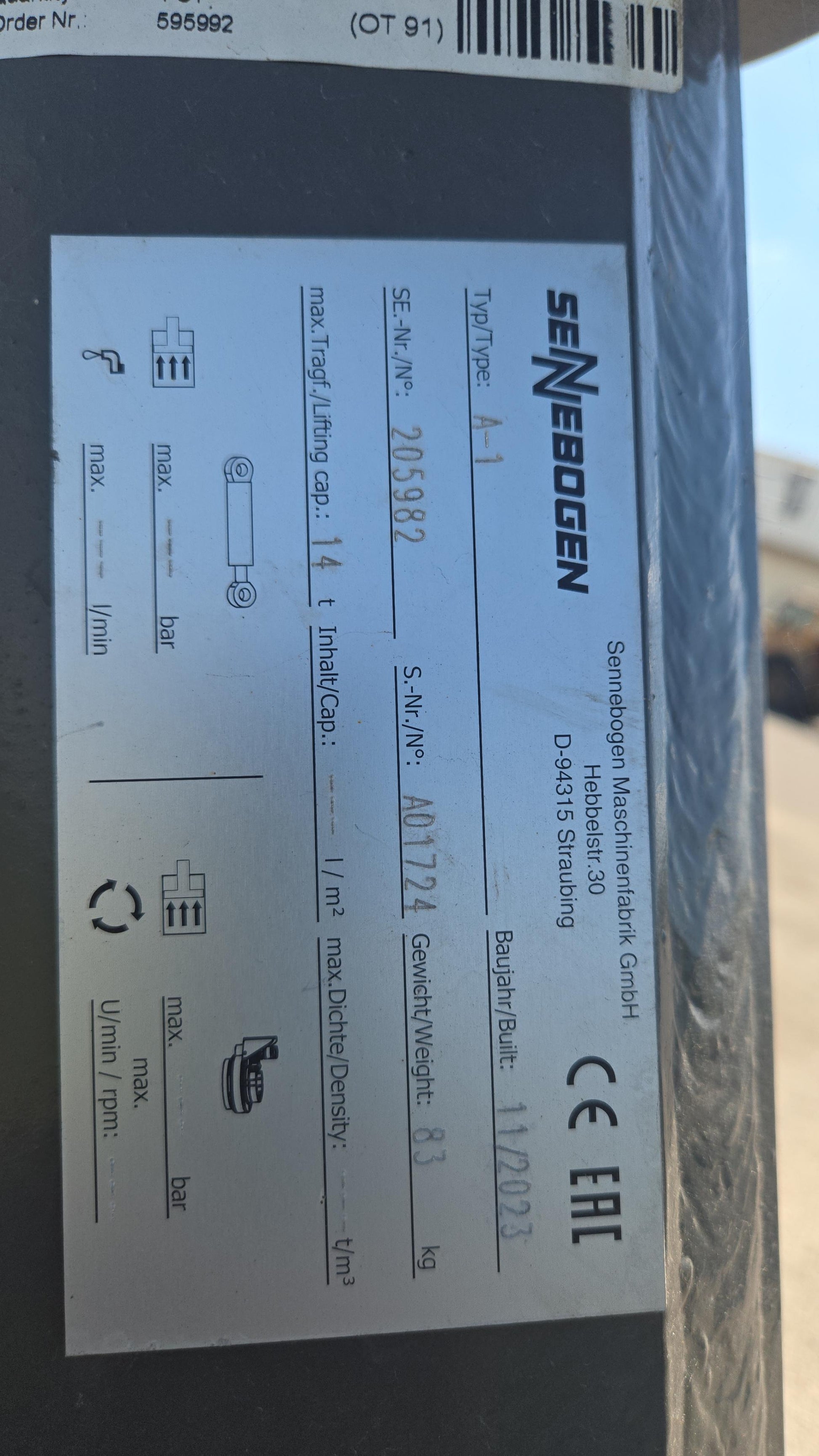

Manufacturer	Sennebogen Maschinenfabrik GmbH
Model Series	SGM Series (Multi-Shell Grab)
Tine Configuration	5-Tine Orange Peel / Polygrab
Capacity	1.0 Cubic Yard (approx. 0.76 m³)
Rotator System	Continuous hydraulic 360° rotation
Primary Materials	Scrap metal, mixed waste, recycled paper, cardboard
