PRICE DOES NOT INCLUDE ANY CUSTOMIZATIONS THAT MAY BE REQUIRED TO FIT YOUR MACHINE
- Tested and Ready for service

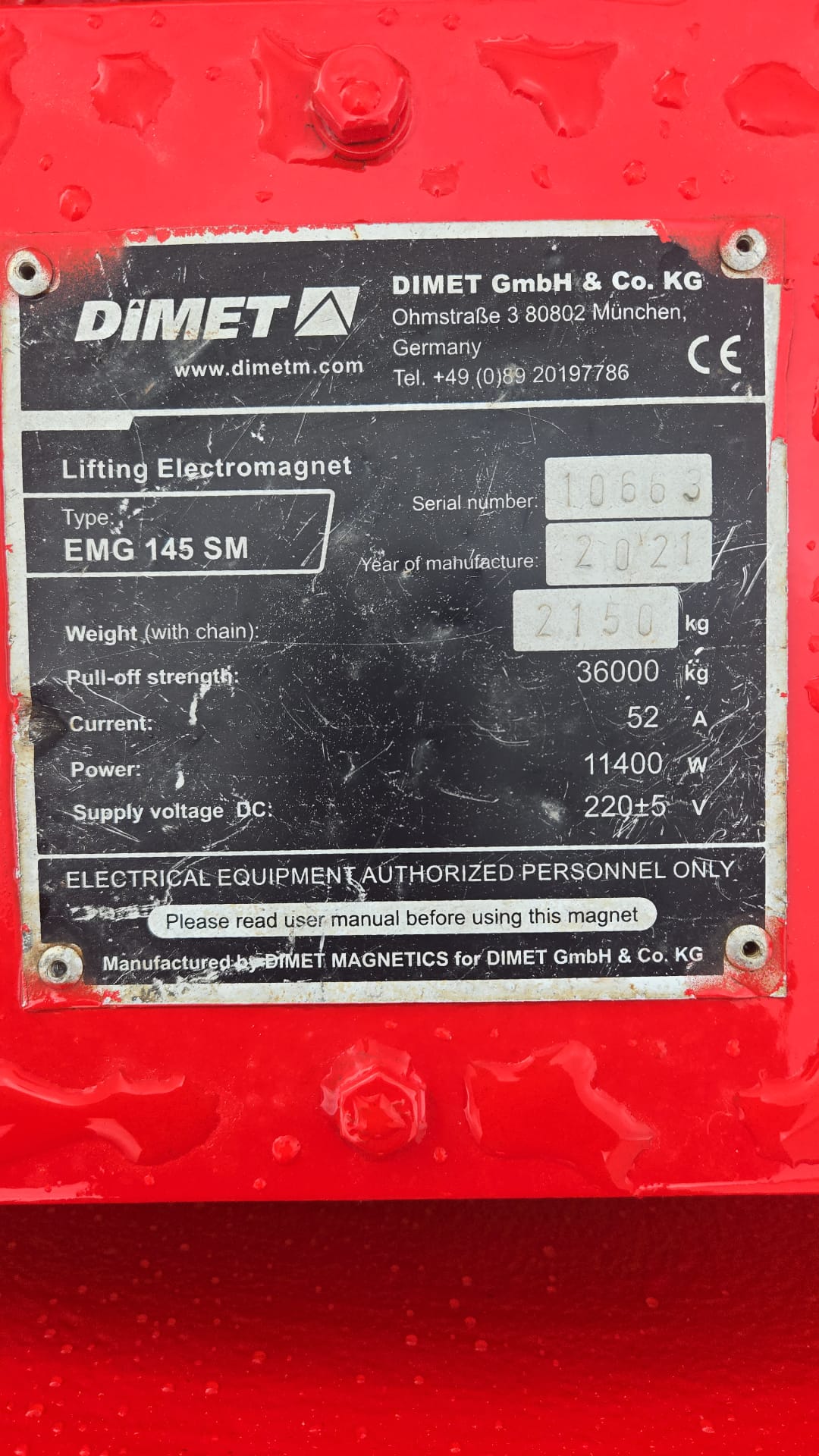

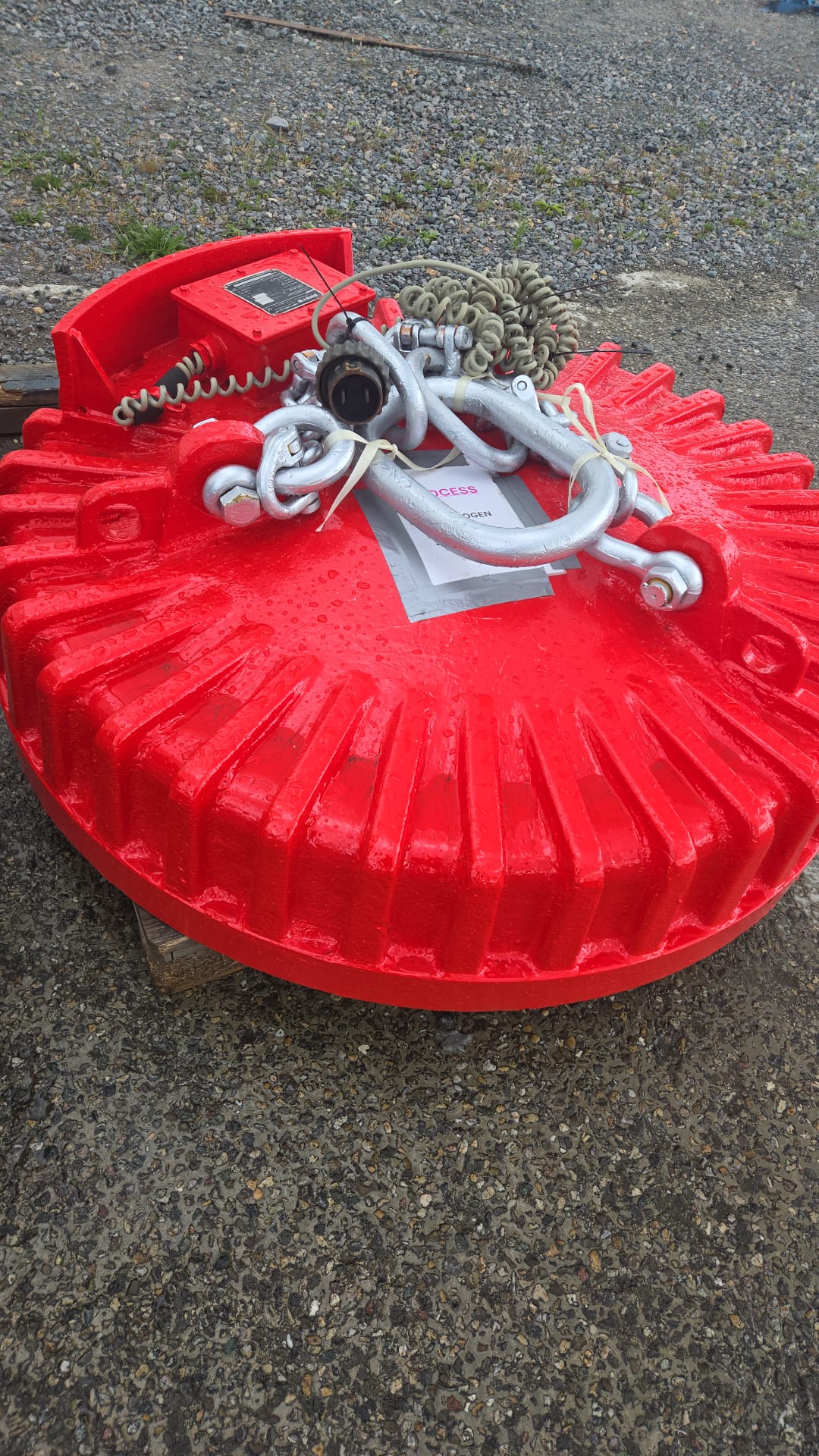

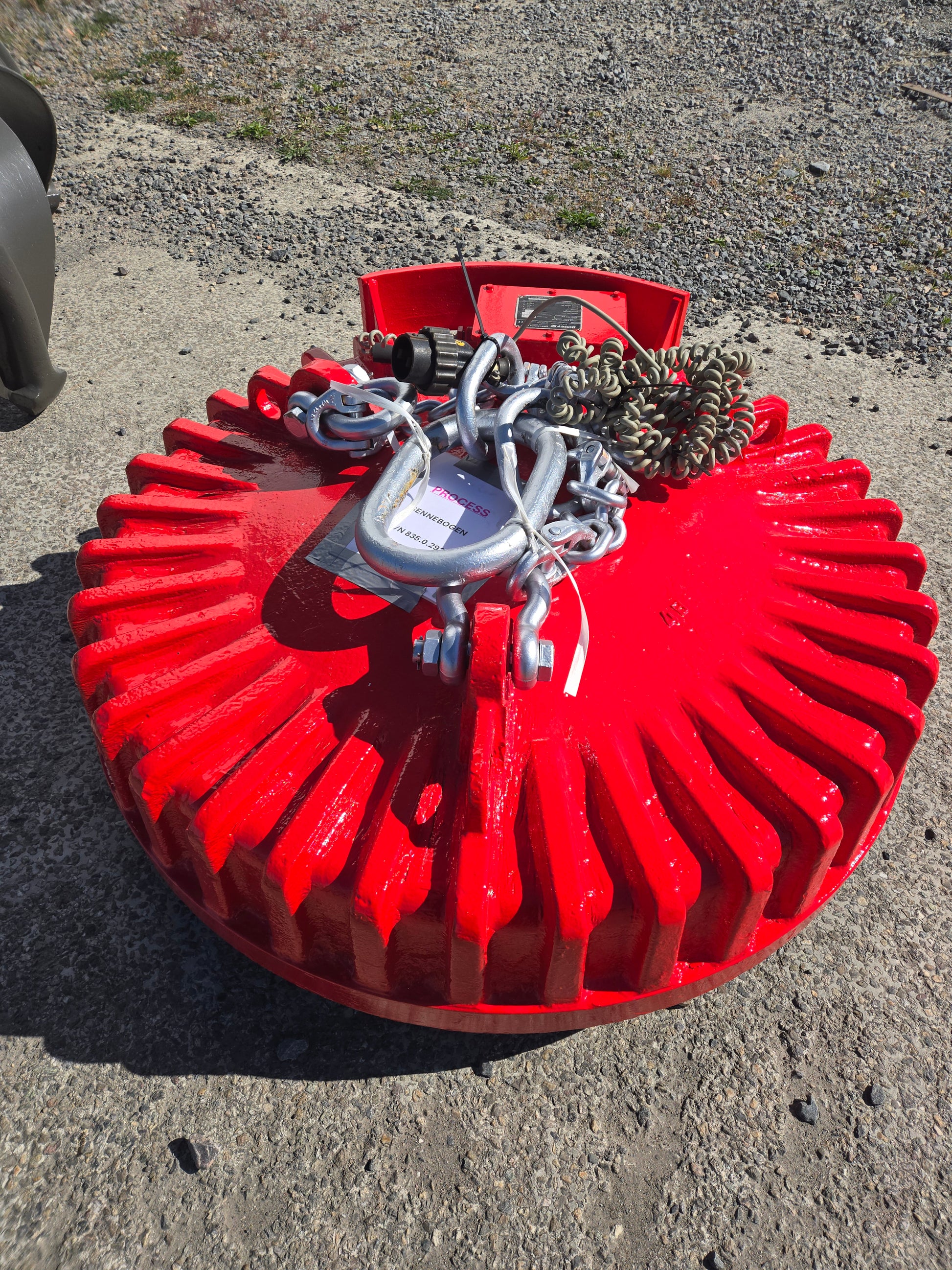

USED 57 /145 Circular Magnet Model EMG 145 Heavy Duty Steel Cast ribbed case for cool operation.
Thick impact resistant manganese bottom plate.
Sealed water resistant
75% Duty Cycle Aluminum Wound Coil for continuous 24/7/365 a day production.
Includes Magnet Chains, Leads and Male/Female Quick Connect Plugs
Specifications:
Lifting Capacity all day average:
Cold Amps: 54 @ 230VDC
Slab: 40,786 lbs.
Ohms: 4.23
#1 Heavy Melt: 2,710 lbs.
Min. Kw req. 13 kW
#2 Broken: 1,740 lbs.
Weight: 4,740 lbs.
Steel Turnings: 1,060 lbs"
