Used Liebherr GM64 4 Tine Grapple | ID: 667
Used Liebherr GM64 4 Tine Grapple | ID: 667
Regular price
$28,500.00
Regular price
Sale price
$28,500.00
Unit price
/
per
PRICE DOES NOT INCLUDE ANY CUSTOMIZATIONS THAT MAY BE REQUIRED TO FIT YOUR MACHINE

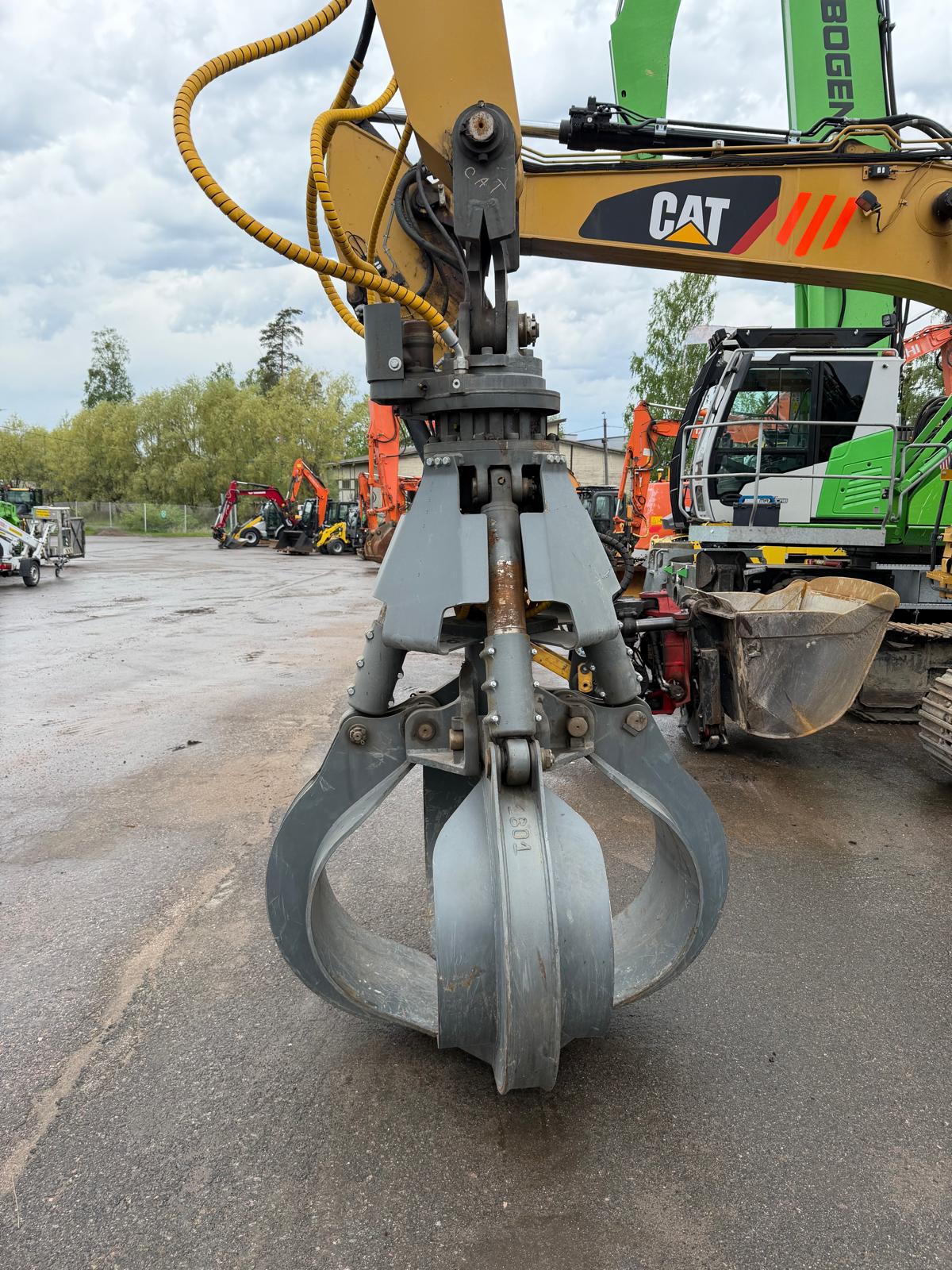

The Liebherr GM64 4-Tine Grapple (Orange Peel Grapple) is engineered to bring heavy-duty scrap handling and demolition sorting performance to compact and intermediate equipment classes. Built with high-strength, impact-resistant steel, this 4-tine multi-tine grab focuses maximum hydraulic pressure across fewer points, delivering the aggressive penetration needed to break into tightly packed, bulky, or interlocking structural scrap piles.
Key Features & Performance Benefits
- High-Pressure 4-Tine Configuration: Fewer tines mean concentrated clamping force per shell tip, perfect for anchoring into large, bulky, or irregular materials.
- Heavy-Duty Structural Durability: Engineered using premium wear-resistant alloys to prevent frame fatigue during continuous sorting and loading shifts.
- Shielded Hydraulic Components: Built-in industrial cylinder guards protect vulnerable rods and seals from flying yard debris and abrasive impacts.
- Optimized for Agile Fleets: Excellent power-to-weight ratio allows smaller mobile handlers to maintain high stability and fast swing cycles.
Technical Specifications
| Manufacturer | Liebherr |
| Model | GM64 |
| Attachment Type | Orange Peel / Multi-Tine Scrap Grapple |
| Capacity Range | Approx. 0.35 m³ - 0.50 m³ (0.45 to 0.65 Cubic Yard) |
| Tine Count & Profile | 4 Tines [Specify: Open or Semi-Closed Shells] |
| Ideal Machine Weight | 10 to 19-Ton Material Handlers / Excavators (e.g., Liebherr LH 18) |
| Condition | [Specify: Used / Fully Inspected / Work-Ready] |
Ideal Applications
- Light to medium scrap metal sorting, handling, and trailer loading
- Feeding compact stationary balers, small shears, or sorting conveyors
- C&D (Construction and Demolition) waste separation
- Municipal wood waste, rail yard, and light bulk handling
