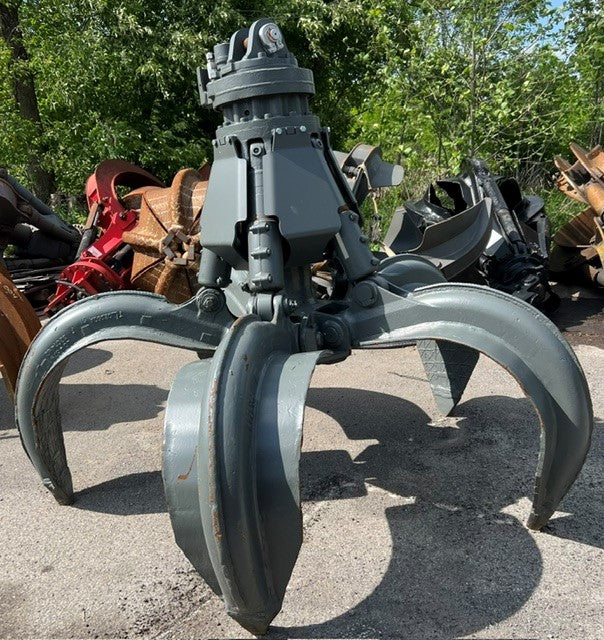

Used Liebherr GM65 5 Tine 0.75 Cu Yd Grapple | ID: 653

This Used Liebherr GM65 5-Tine Semi-Bladed Grapple features a highly versatile .75 Cubic Yard (.75CY) capacity engineered for mid-sized material handlers. The semi-bladed (semi-closed) tine profile provides the ideal middle ground for scrap and recycling operations—offering the aggressive, pointed piercing tips needed to penetrate nested structural scrap while using the wider bladed shells to cleanly scoop and retain smaller, loose material without excessive spillage.

The high-efficiency 5-tine configuration optimizes radial clamping geometry, ensuring maximum payload retention during fast-cycle loading. Constructed with high-strength, wear-resistant steel, this robust unit has been fully inspected and is work-ready to step directly into your daily rotation.

Key Features & Performance Benefits

• Semi-Bladed Shell Configuration: Provides excellent containment for mixed scrap, industrial waste, and loose turnings while retaining pointed tips for heavy penetration.
• Optimized .75 Cubic Yard Capacity: Engineered to maximize throughput on intermediate machines without overloading the carrier's hydraulics.
• Heavy-Duty 5-Tine Design: Distributes clamping force evenly across five points for superior structural grip on irregular or unbalanced loads.
• Industrial Cylinder Guards: Equipped with heavy steel shielding to isolate hydraulic cylinders from abrasive impacts and flying yard debris.

Technical Specifications

Ideal Applications

• Mixed or shredded scrap metal sorting and processing
• Commercial demolition debris management and sweeping
• Solid waste transfer stations and municipal material handling
• Feeding mid-sized stationary shears, balers, or shredder lines
